Front Side Door Lock Cylinder Bezel Replacement

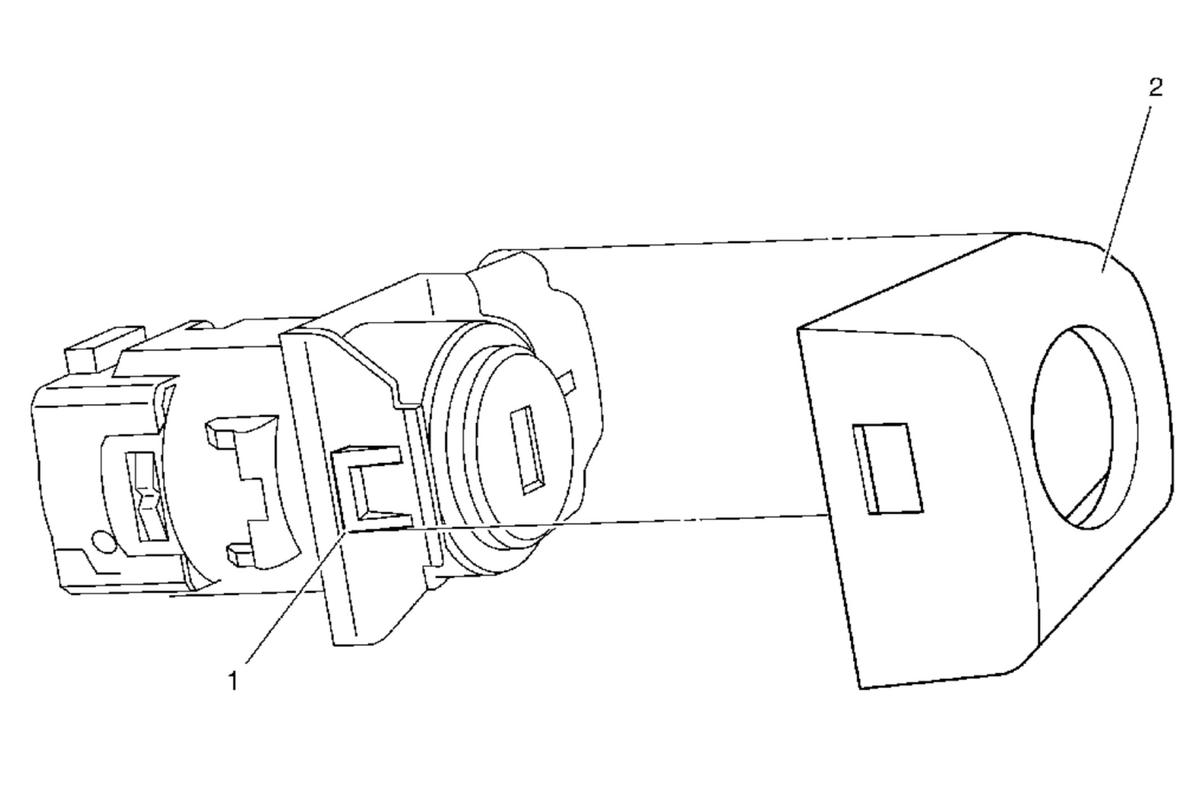

Fig 1: Front Side Door Lock Cylinder Opening Cover Bezel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front side door outside handle. Refer to Front Side Door Outside Handle Replacement (Passive Entry ATH)  or Front Side Door Outside Handle Replacement (Base) .
1	Front Side Door Lock Cylinder Bezel Retainer Procedure  Use a small flat-bladed tool to release the front side door lock cylinder bezel.
2	Front Side Door Lock Cylinder Bezel
