Passive Entry and Passive Start Antennas (BTM)

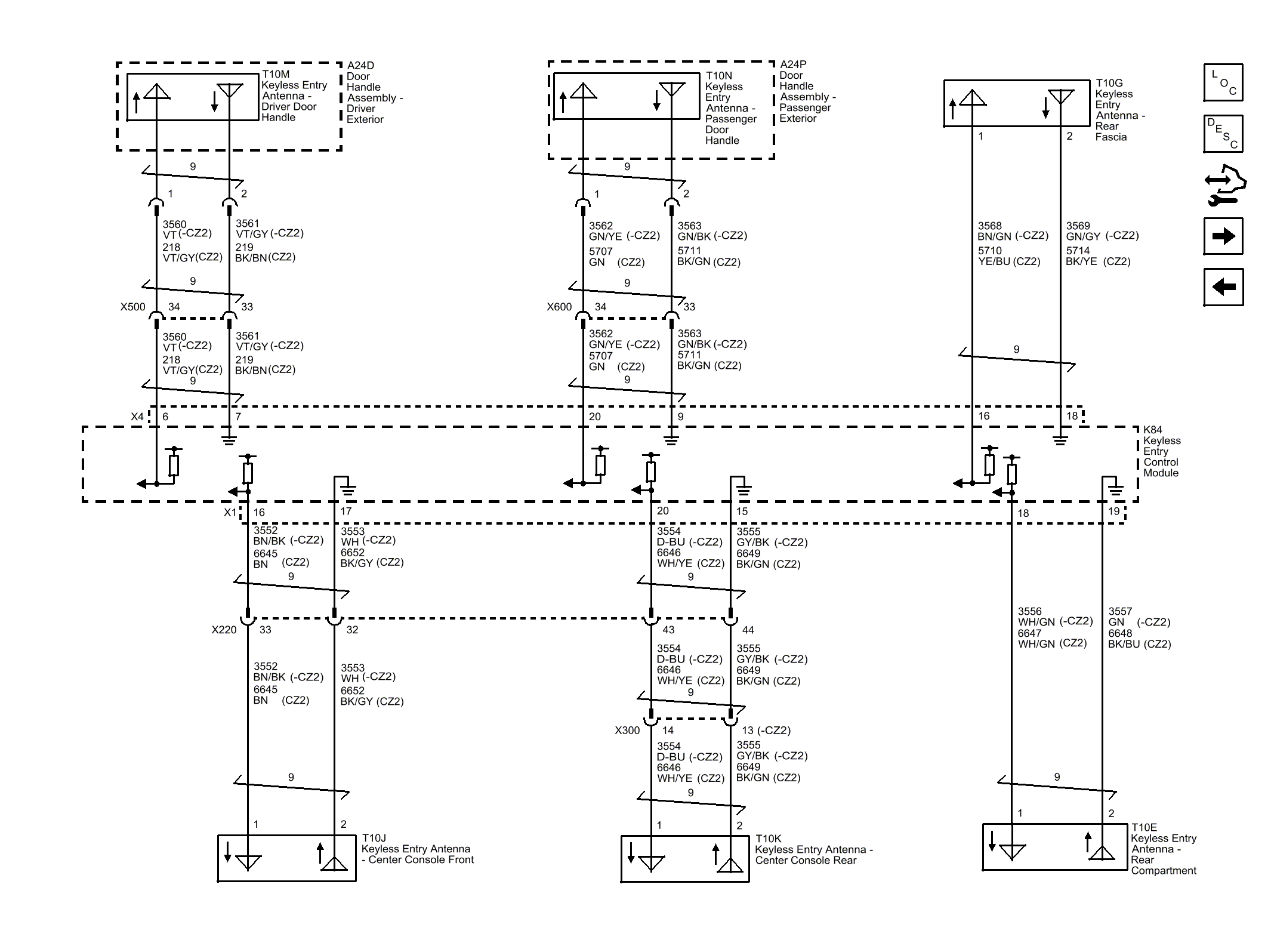

Fig 1: Passive Entry and Passive Start Antennas (BTM)

GM3770201

Courtesy of GENERAL MOTORS COMPANY
