Wiper System And Washer System Wiring Schematics: Wiper/Washer

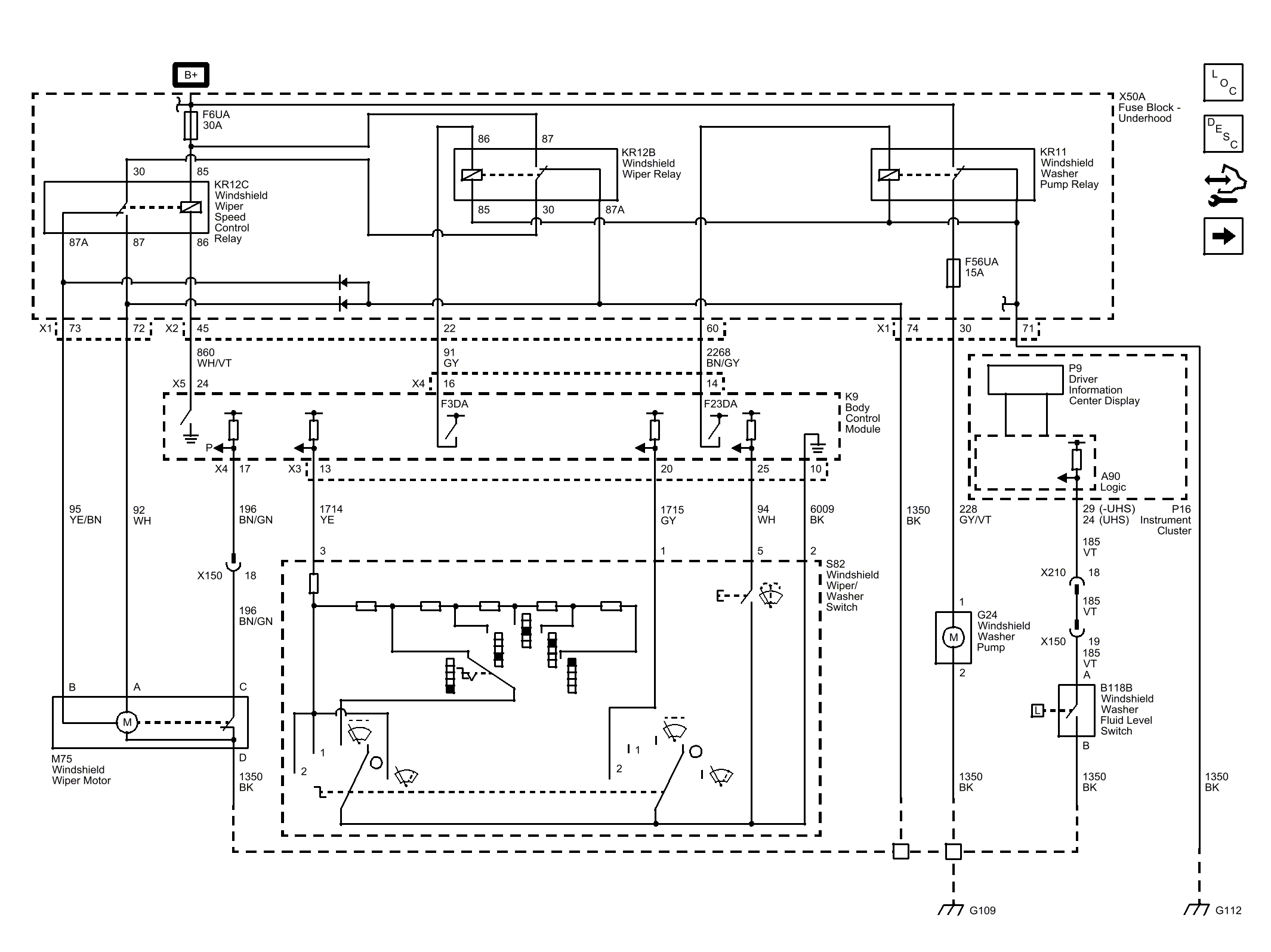

Fig 1: Wiper/Washer

GM3768356

Courtesy of GENERAL MOTORS COMPANY
