Headlamp and Outside Moisture Sensor (CZ2)

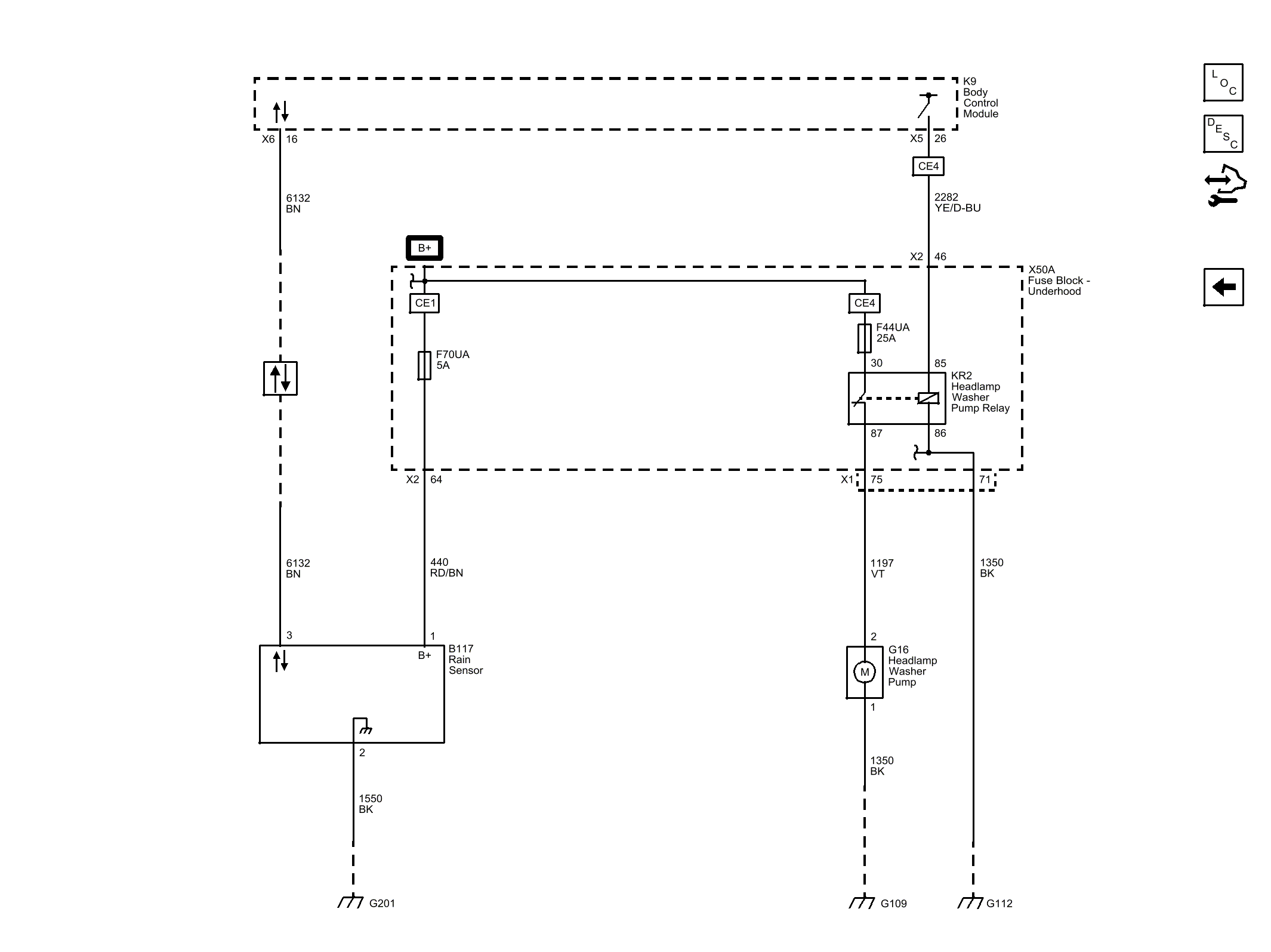

Fig 1: Headlamp and Outside Moisture Sensor (CZ2)

GM3768365

Courtesy of GENERAL MOTORS COMPANY
