Windshield Wiper Transmission Replacement

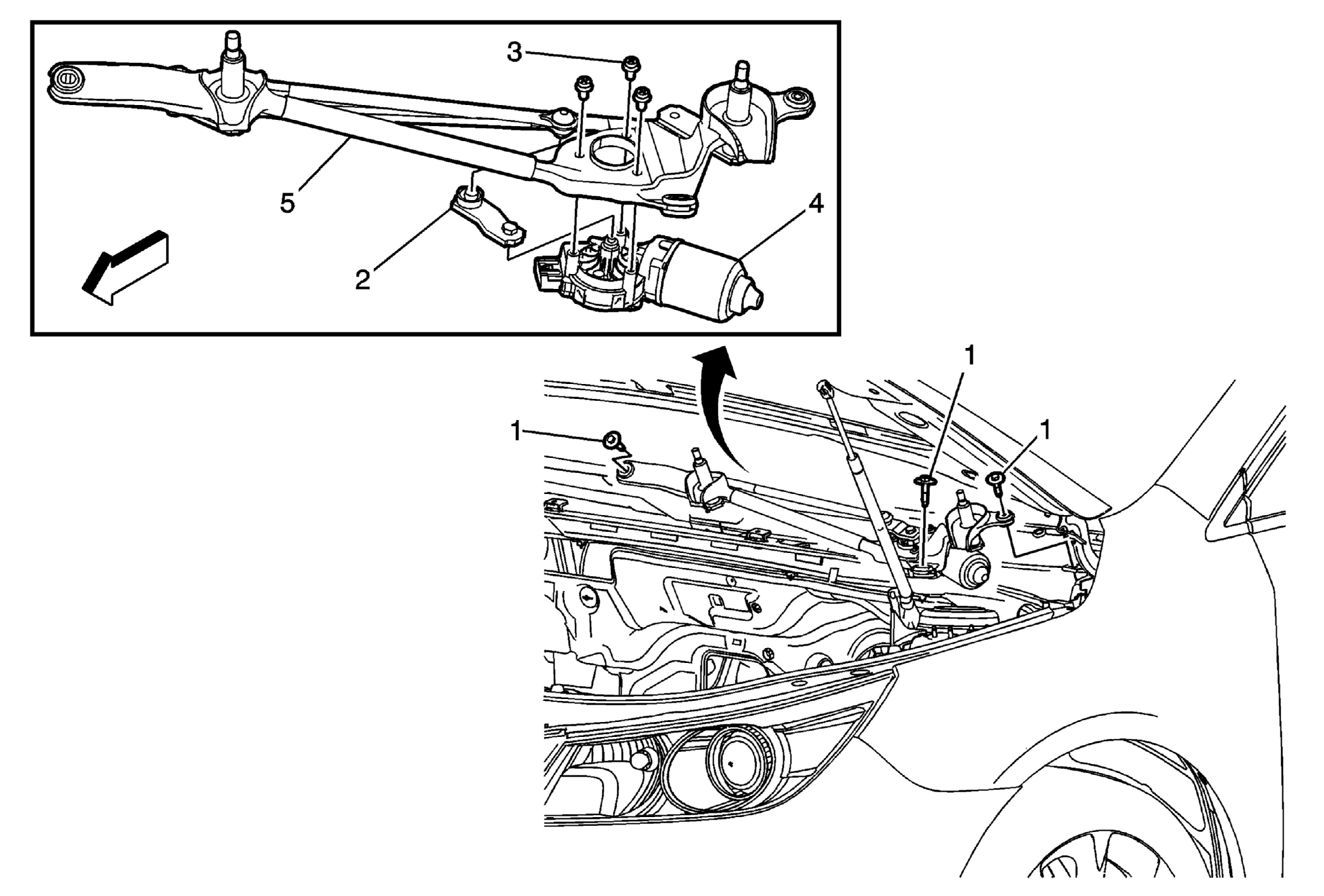

Fig 1: Windshield Wiper Transmission Components
GM2202208Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
  2. Remove the dash panel brace.
1 Windshield Wiper Transmission Bolt (Qty:3)
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Lift the windshield wiper transmission from the plenum.
  2. Disconnect the electrical connector from the windshield wiper motor.
  3. Remove the windshield wiper transmission from the vehicle.

Tighten
9 N.m (80 lb in)
2 Windshield Wiper Motor Crank Arm
3 Windshield Wiper Motor Bolt (Qty3)
Procedure
Remove the windshield wiper motor. Refer to Windshield Wiper Motor Replacement .
4 Windshield Wiper Motor
5 Windshield Wiper Transmission Assembly
