Windshield Wiper Blade Replacement

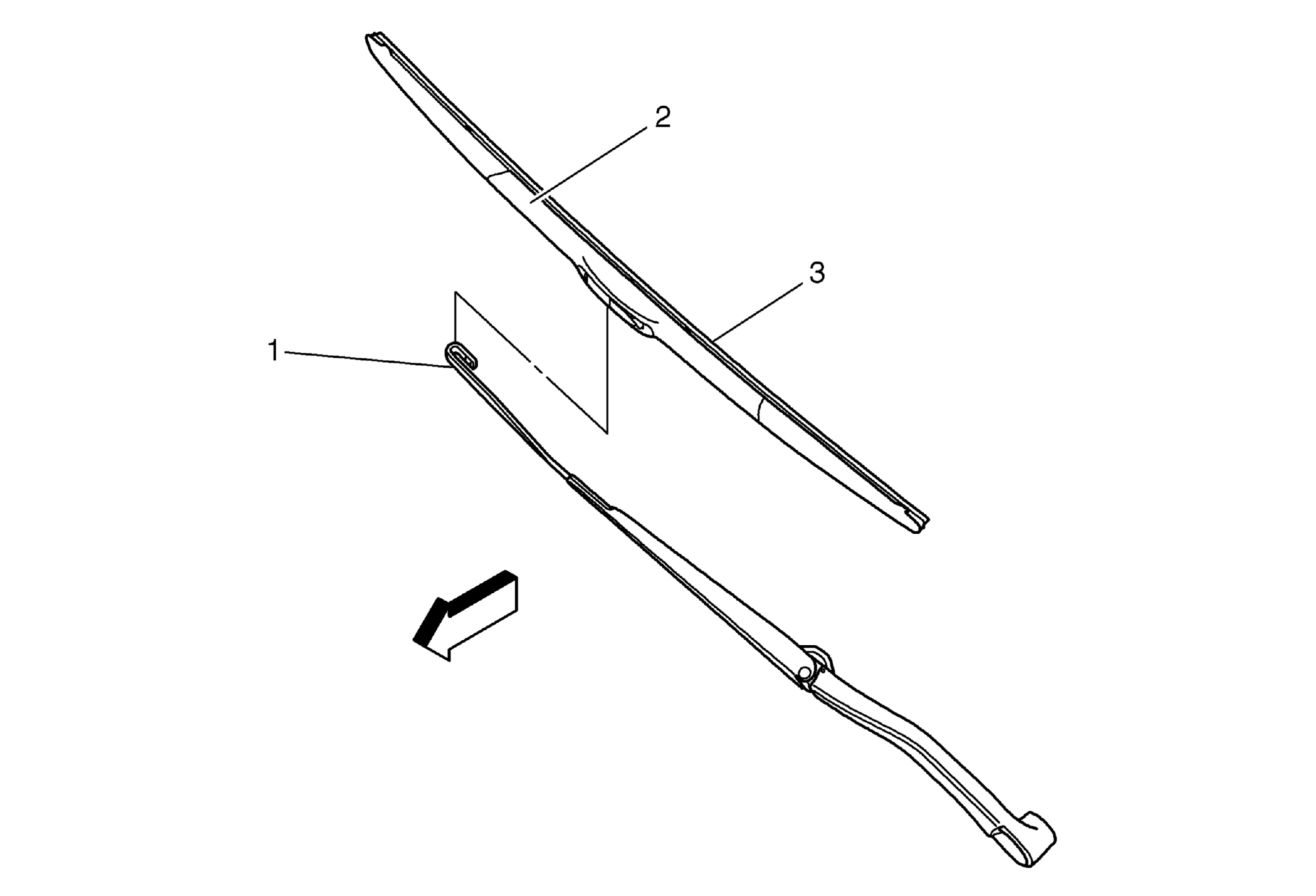

Fig 1: Windshield Wiper Blades & Cap

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise the wiper arm up off the windshield.
1	Windshield Wiper Blade Cap TIP: Use a small flat-bladed tool to open the cap.
2	Windshield Wiper Blade Procedure Push upward the windshield wiper blade. Slide the windshield wiper blade from the wiper arm. Carefully release the wiper arm back to the windshield.
3	Windshield Washer Blade TIP: Discard if rubber appears worn or does not wipe the windshield clean.
