Windshield Washer Pump Replacement

Preliminary Procedure

1. Remove the front wheelhouse liner. Refer to Front Wheelhouse Front Liner Replacement .
2. Disconnect the windshield washer pump electrical connector.
3. Disconnect the windshield washer pump hose from the washer pump spout.
4. Place a clean suitable drain pan under the washer pump area in order to contain loss windshield washer solvent.

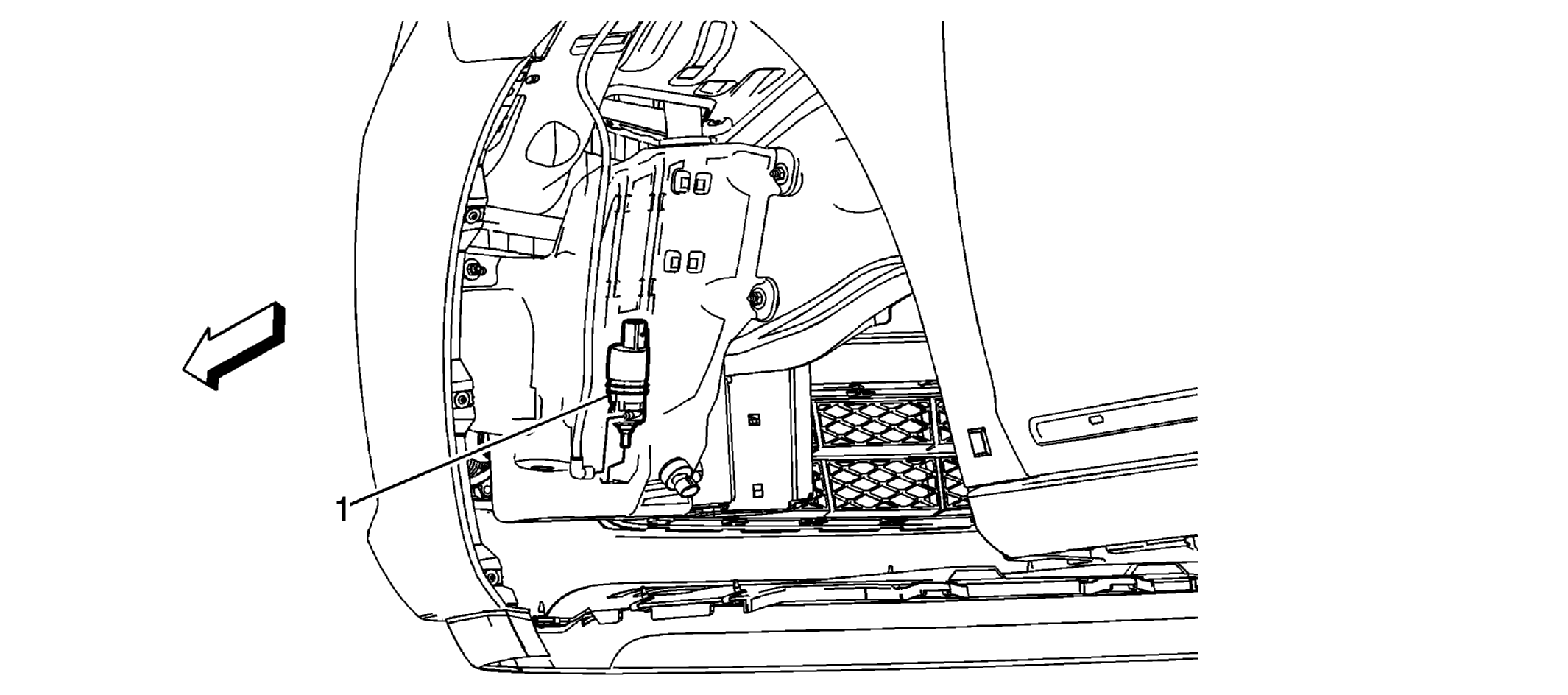

5. Pull the top of the washer pump outward in order to disengage the top of the washer pump from the windshield washer container.
6. Use two medium sized flat-bladed tools under the washer pump grommet and pry in opposite, disengage the washer pump from the windshield washer container.
7. Remove and discard the windshield washer pump and grommet.
