Windshield Washer Nozzle Replacement

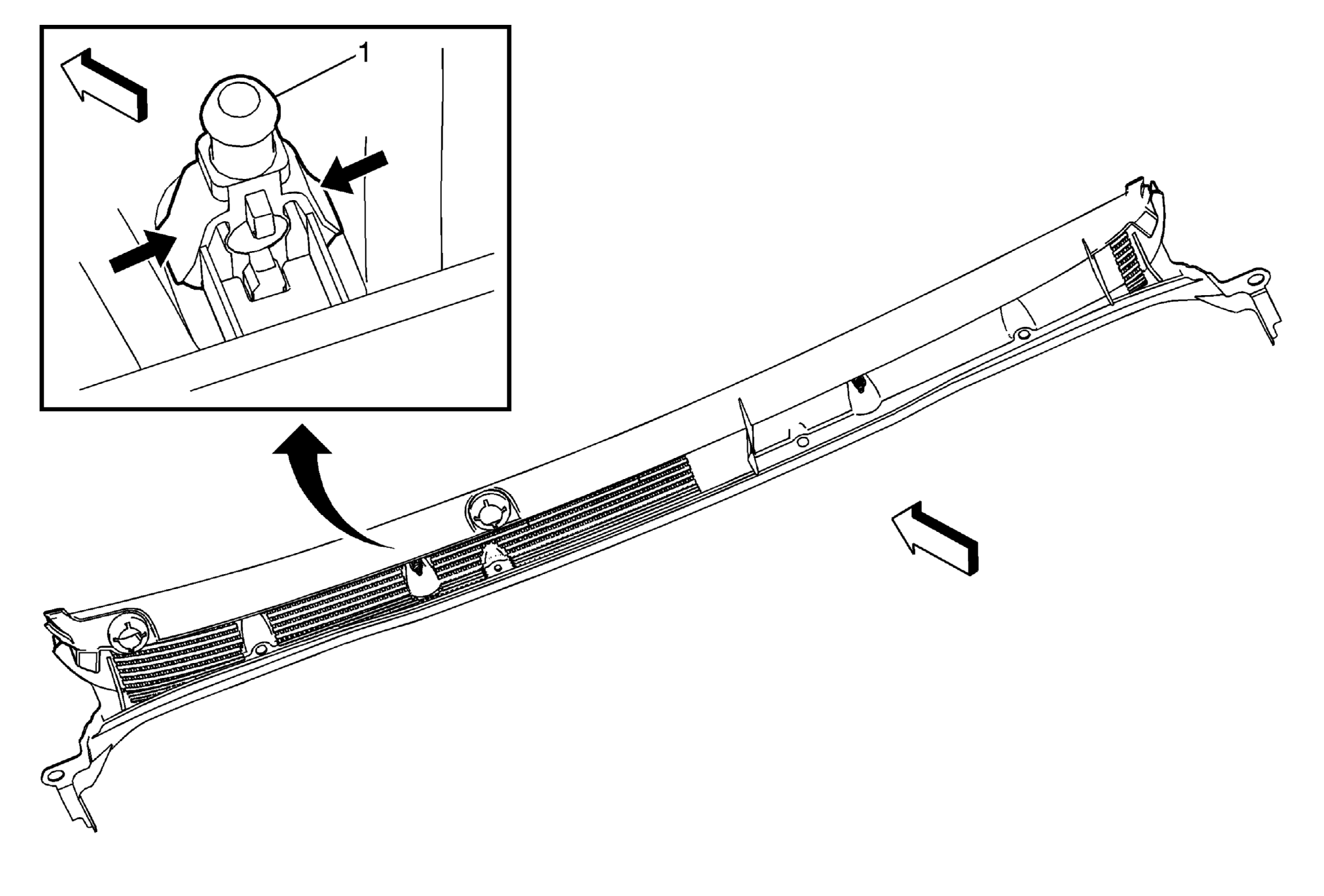

Fig 1: Windshield Washer Nozzle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the air inlet grille panel assembly. Refer to Air Inlet Grille Panel Replacement .
1	Windshield Washer Nozzle (Qty:2) TIP:  Depress the two washer nozzle tabs and push outward in order to remove the nozzle from the air inlet grille panel assembly.
