Windshield Washer Nozzle Hose Replacement

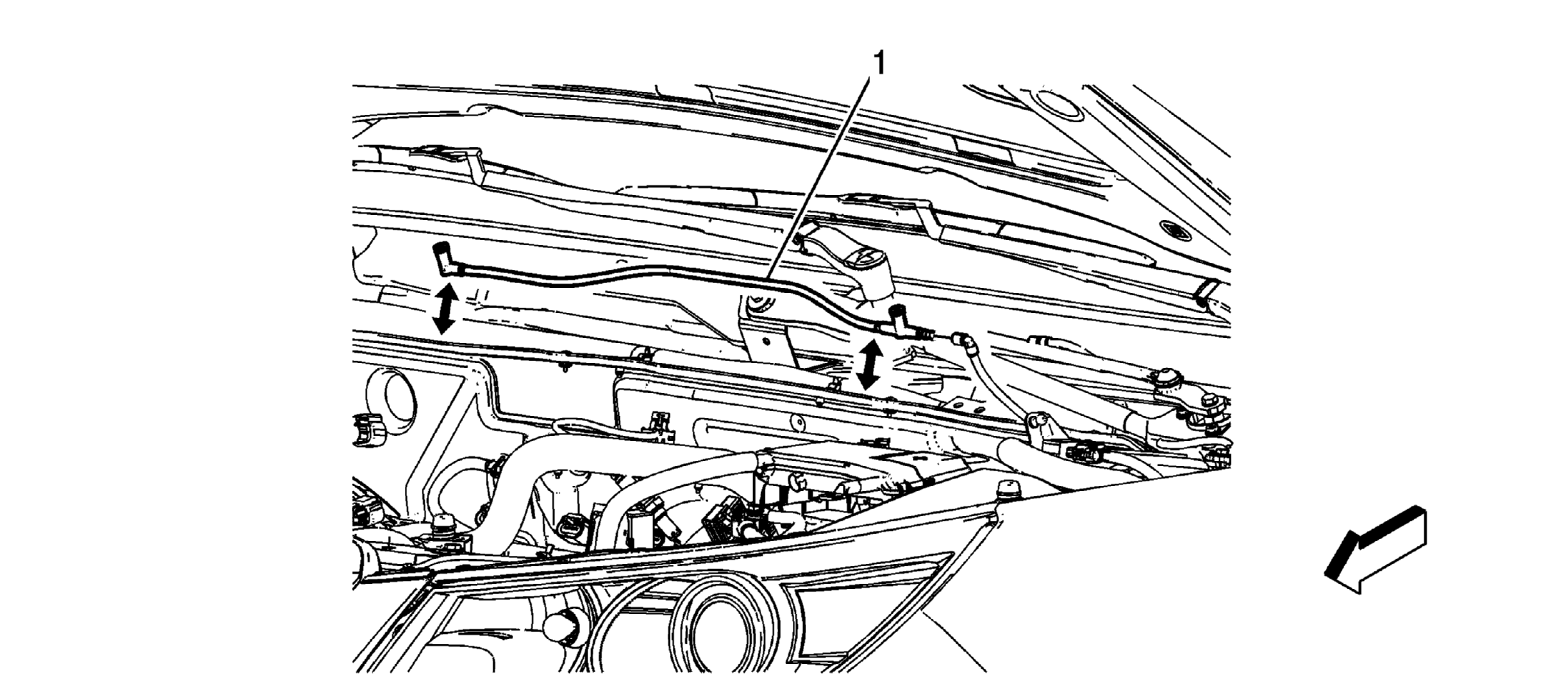

Fig 1: Windshield Washer Nozzle Hose

GM2205384

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
Disconnect the washer container hose from the T connection at the windshield washer nozzle hose assembly in the plenum.
Remove the windshield washer nozzle hose from the plenum.

1

Windshield Washer Nozzle Hose Assembly
TIP: Prime the windshield washer pump after the new hose installation.
