Air Inlet Grille Panel Water Deflector Replacement

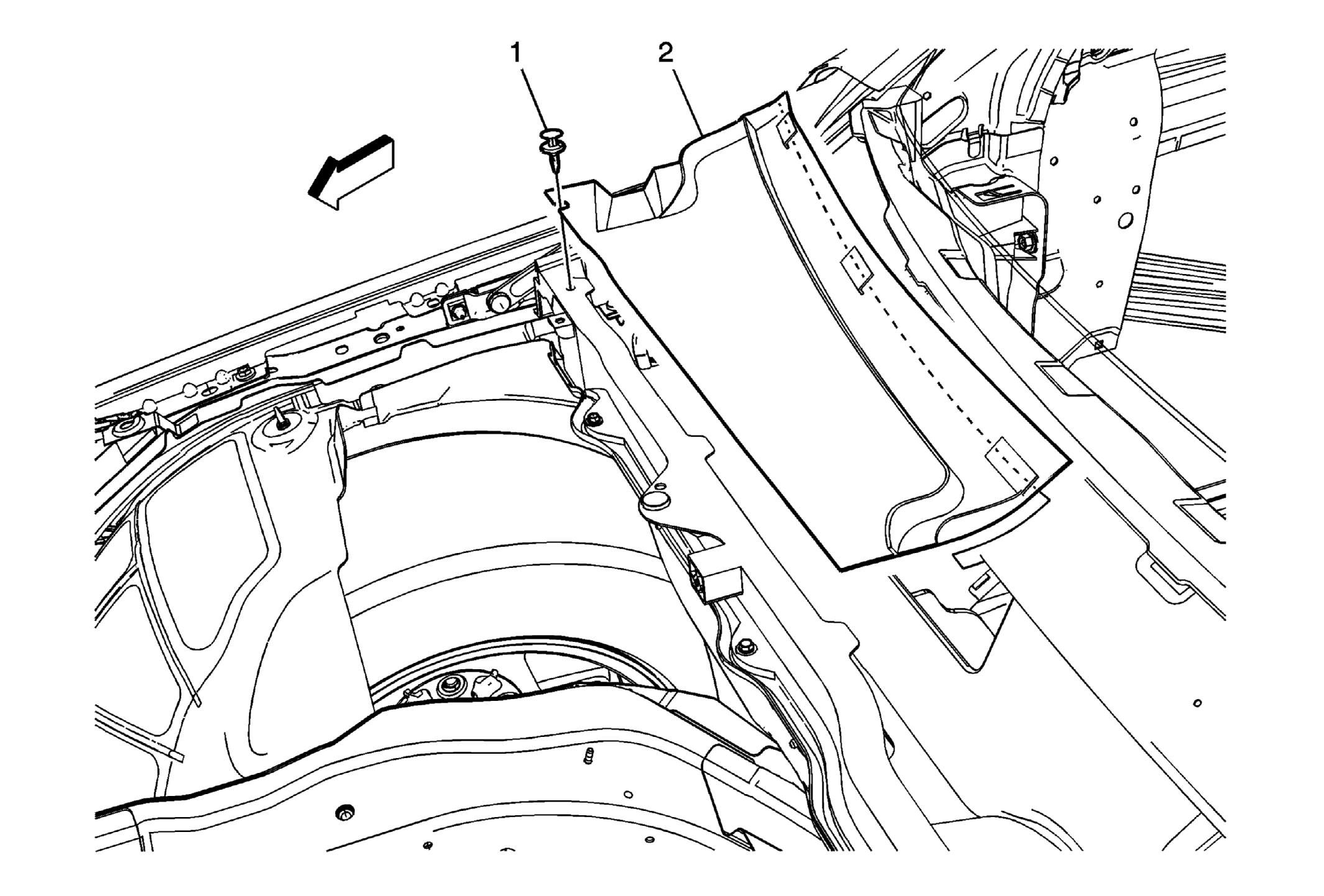

Fig 1: Air Inlet Grille Panel Water Deflector

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Open and support the hood assembly. Remove the air inlet grille panel assembly. Refer to Air Inlet Grille Panel Replacement .
1	Push Pin Retainer
2	Air Inlet Water Deflector Assembly Procedure Once the push pin retainer has been removed, lift the front edge upward and pull the deflector from under the edge of the plenum upper panel.

Callout

Component Name

Preliminary Procedures

Open and support the hood assembly.
Remove the air inlet grille panel assembly. Refer to Air Inlet Grille Panel Replacement .

Push Pin Retainer

Air Inlet Water Deflector Assembly
Procedure
Once the push pin retainer has been removed, lift the front edge upward and pull the deflector from under the edge of the plenum upper panel.
