Instrument Panel and Steering Wheel Switches

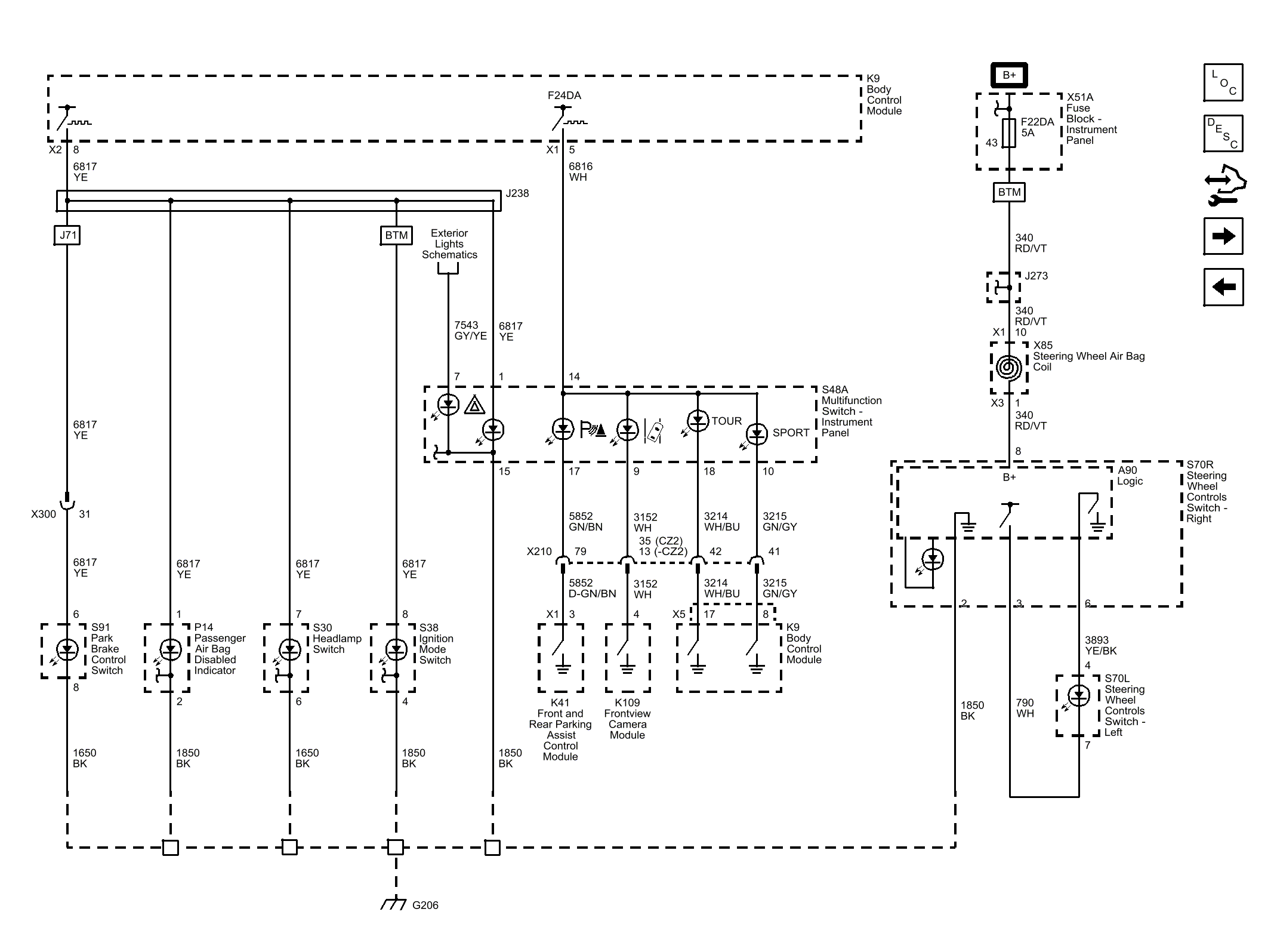

Fig 1: Instrument Panel and Steering Wheel Switches

GM3768285

Courtesy of GENERAL MOTORS COMPANY
