Dome/Reading Lamps, Seat Memory Switch, and Sunroof Switches

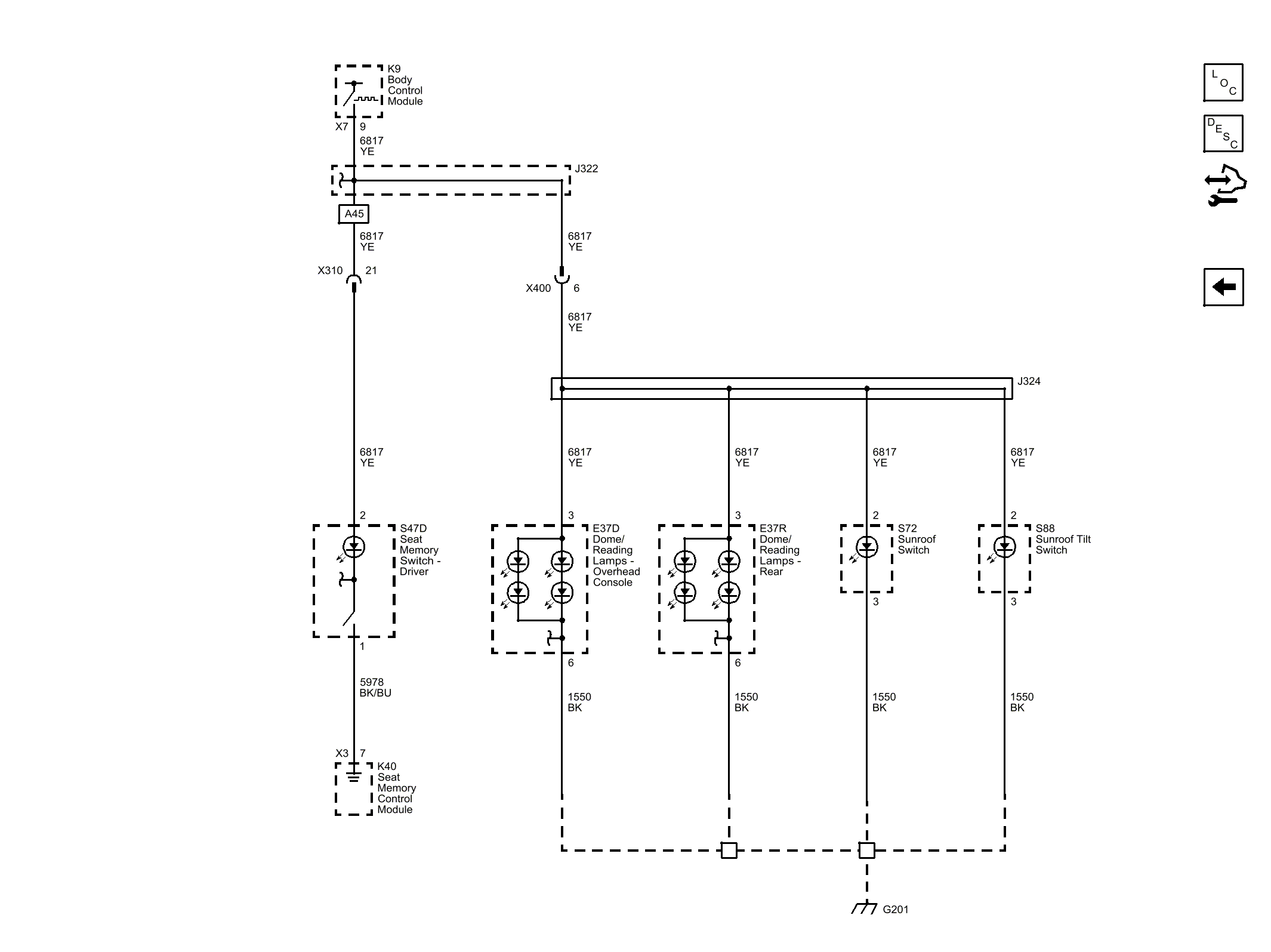

Fig 1: Dome/Reading Lamps, Seat Memory Switch, and Sunroof Switches

GM3768280

Courtesy of GENERAL MOTORS COMPANY
