Headlamps and Daytime Running Lamps (T4F)

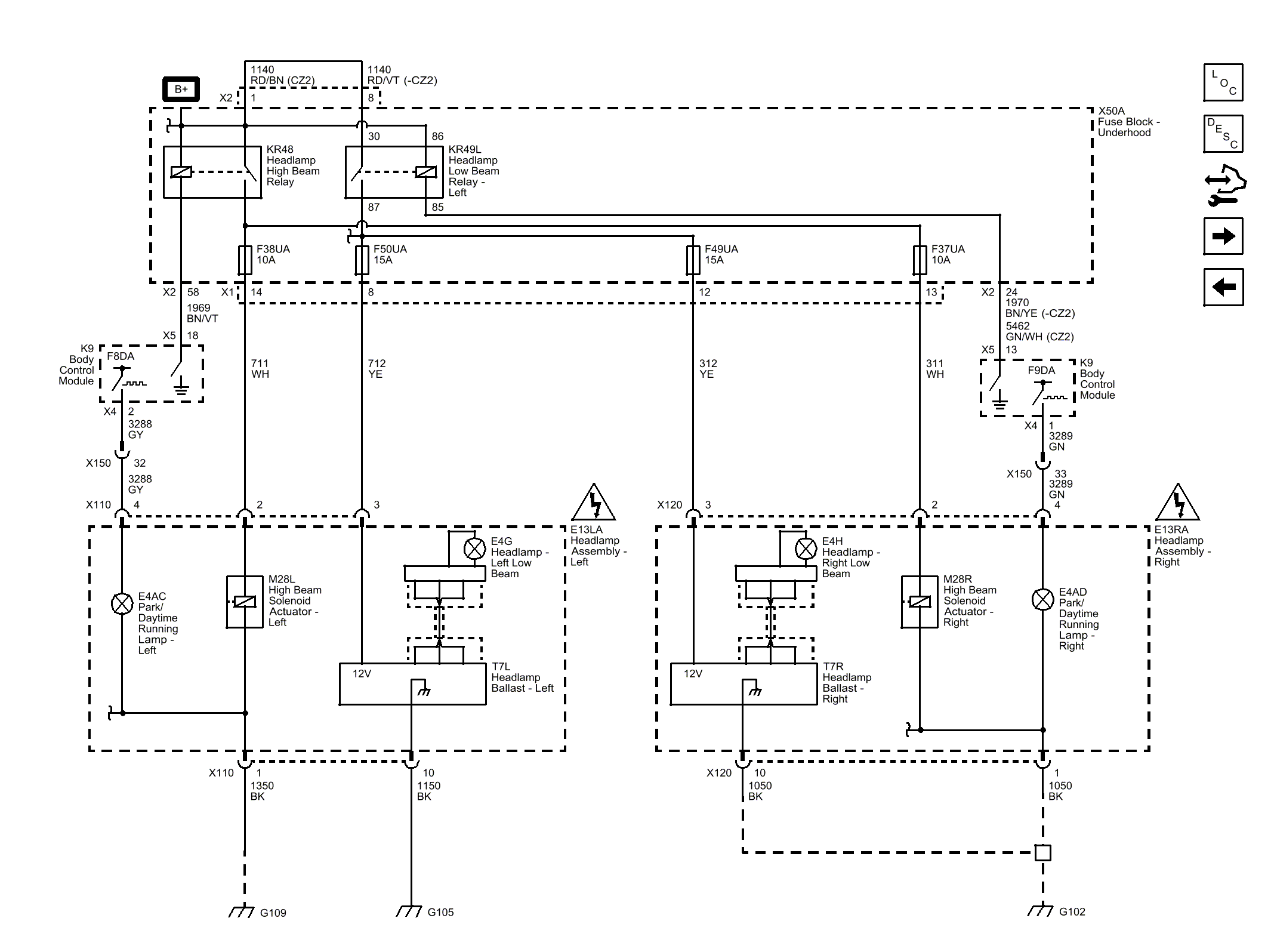

Fig 1: Headlamps and Daytime Running Lamps (T4F)

GM3768243

Courtesy of GENERAL MOTORS COMPANY
