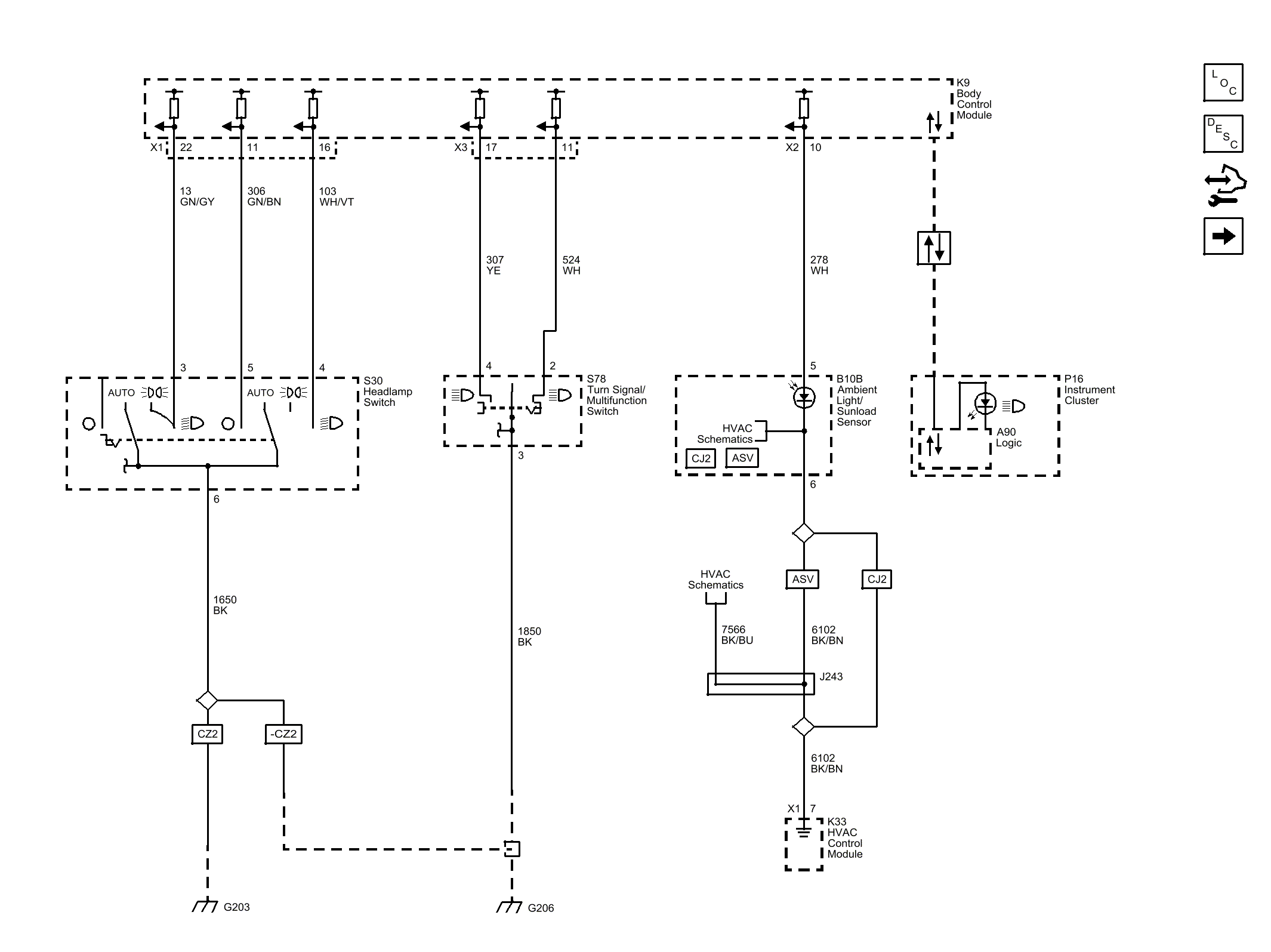

Home >> Buick >> 2015 >> Regal GS, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Illumination Lights >> Lighting System - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Headlights/Daytime Running Lights (DRL) Wiring Schematics >> Headlamp Controls
