License, Stop, Tail, and Rear Turn Signal Lamps

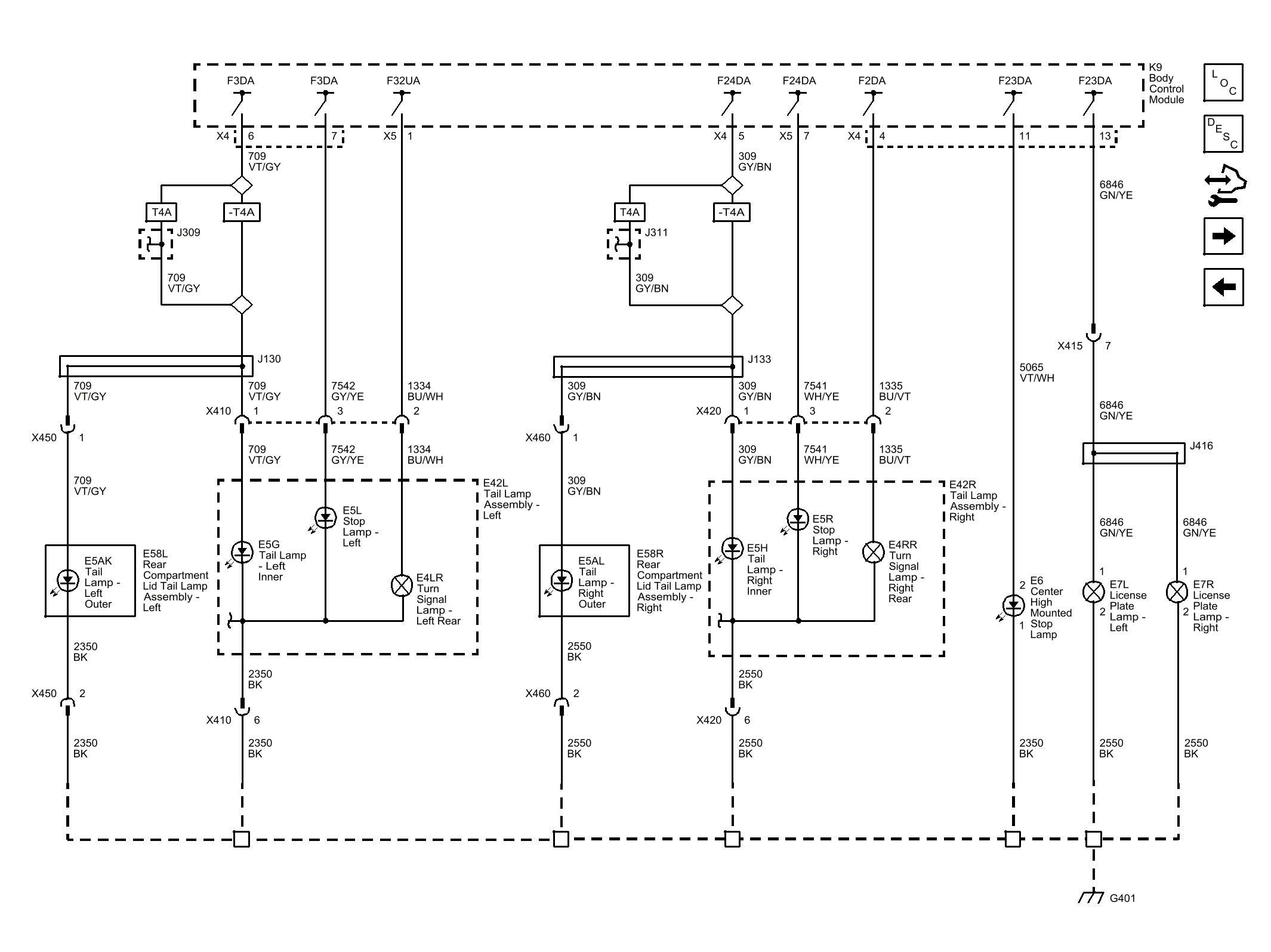

Fig 1: License, Stop, Tail, and Rear Turn Signal Lamps

GM3768261

Courtesy of GENERAL MOTORS COMPANY
