Windshield Outside Moisture and Headlamp Automatic Control Ambient Light Sensor Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the inside rearview mirror mount plate cover. Refer to Inside Rearview Mirror Mount Plate Cover Replacement |
|

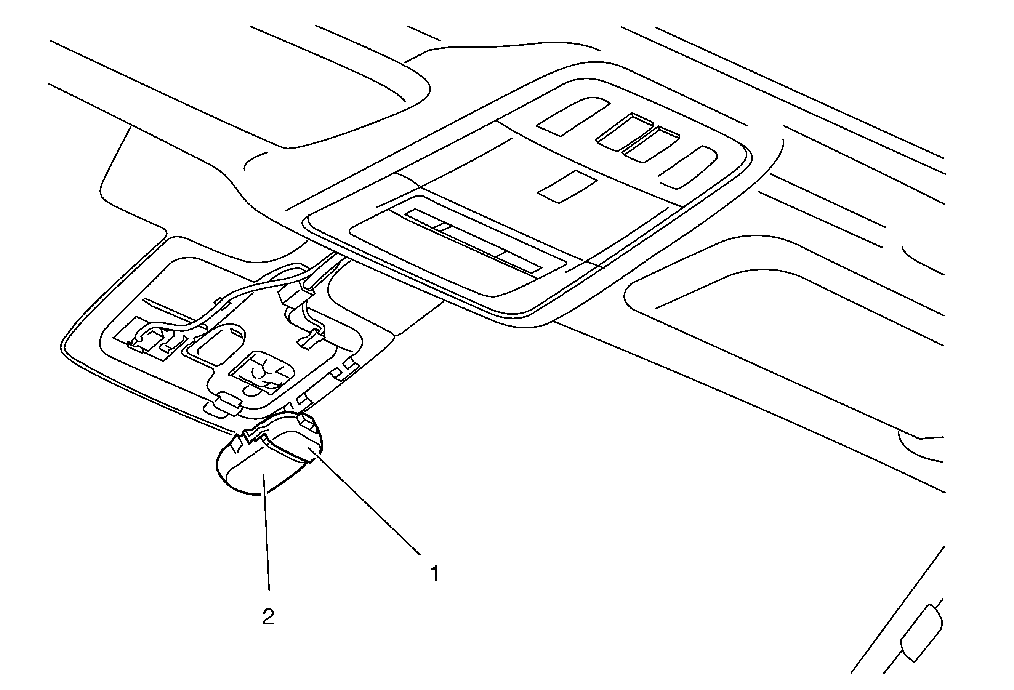

| 1 | Windshield Outside Moisture and Headlamp Automatic Control Ambient Light Sensor Retainer TIP: Use a small flat-bladed tool to release the locking retainer on the windshield outside moisture and headlamp automatic control ambient light sensor and push the cap upwards. |
| 2 | Windshield Outside Moisture and Headlamp Automatic Control Ambient Light Sensor |
