Headlamp Bulb Replacement

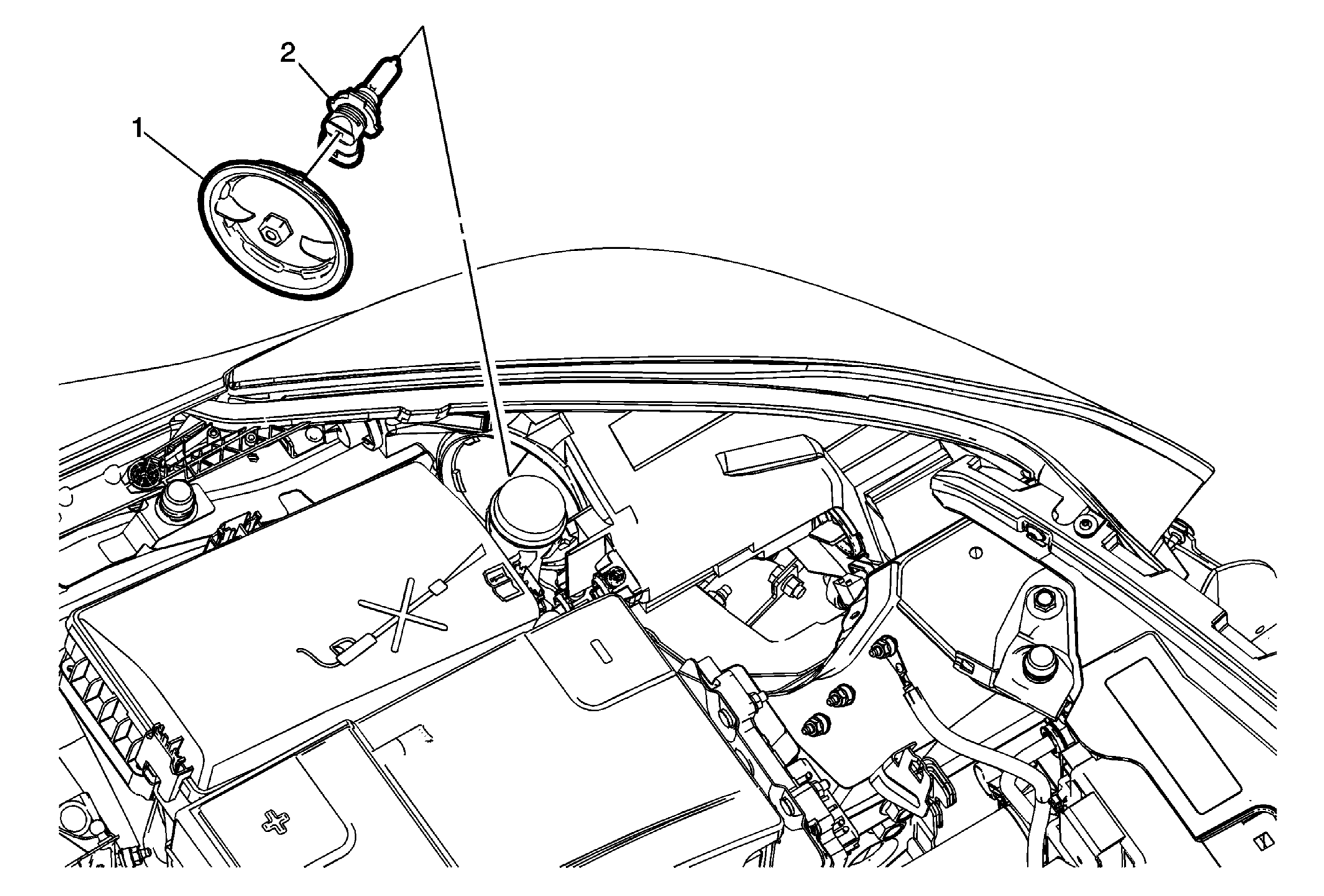

Fig 1: Headlamp Bulb

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Open and support the hood.
1	Headlamp Opening Cover
2	Headlamp Bulb WARNING: Refer to Halogen Bulb Warning . Procedure Disconnect the electrical connector. Turn the headlamp bulb a quarter turn counterclockwise and pull from the headlamp.

Callout

Component Name

Preliminary Procedure
Open and support the hood.

Headlamp Opening Cover

Headlamp Bulb

WARNING:

Procedure

Disconnect the electrical connector.
Turn the headlamp bulb a quarter turn counterclockwise and pull from the headlamp.
