Front Turn Signal Lamp Bulb Replacement

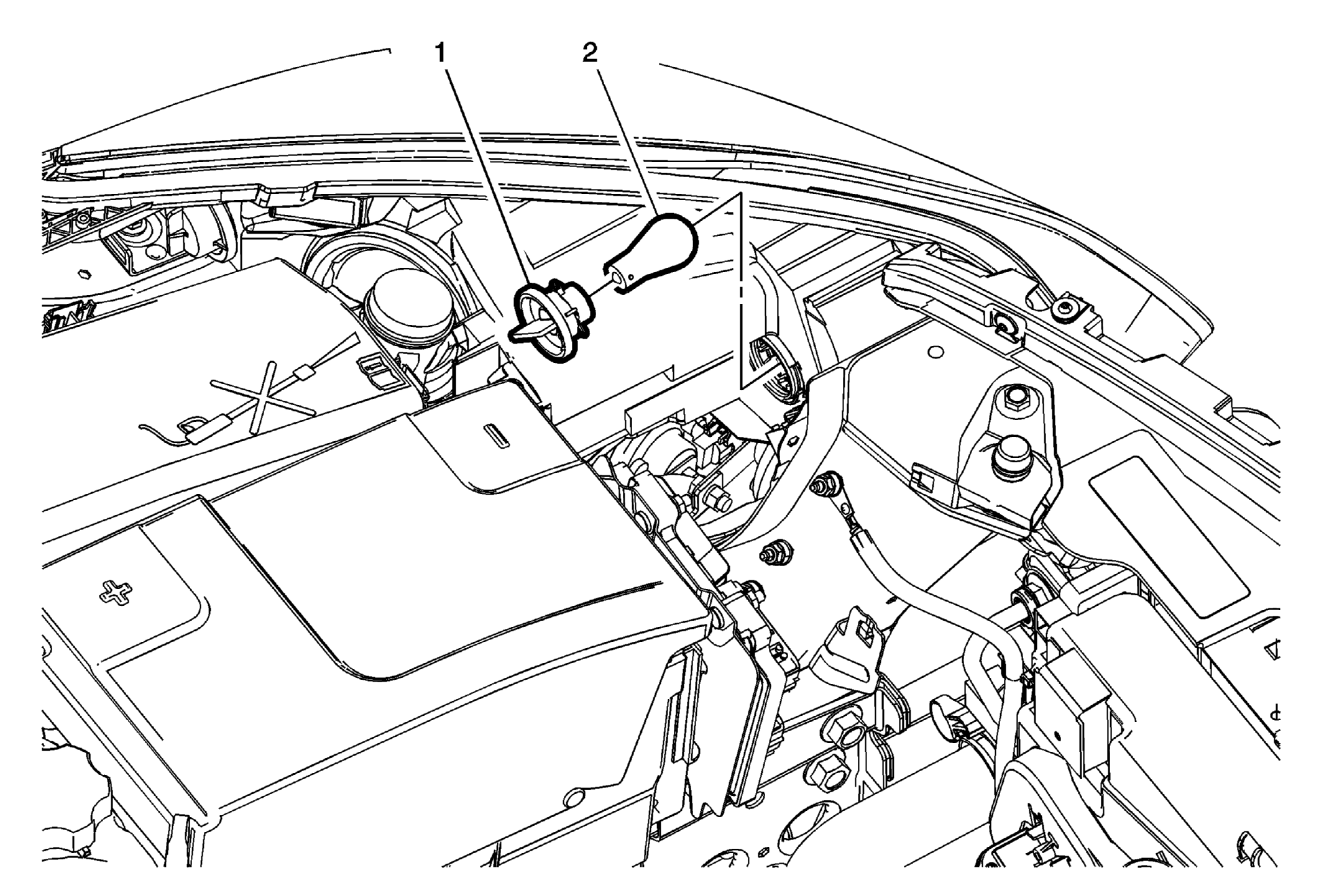

Fig 1: Front Turn Signal Lamp Bulb

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Open and support the hood.
1	Front Turn Signal Lamp Bulb Socket Procedure  Turn the front turn signal lamp bulb socket counterclockwise and pull from the headlamp.
2	Front Turn Signal Lamp Bulb Procedure  Pull the front turn signal lamp bulb straight out of the front turn signal lamp bulb socket.
