Front Side Door Sill Courtesy Lamp Replacement

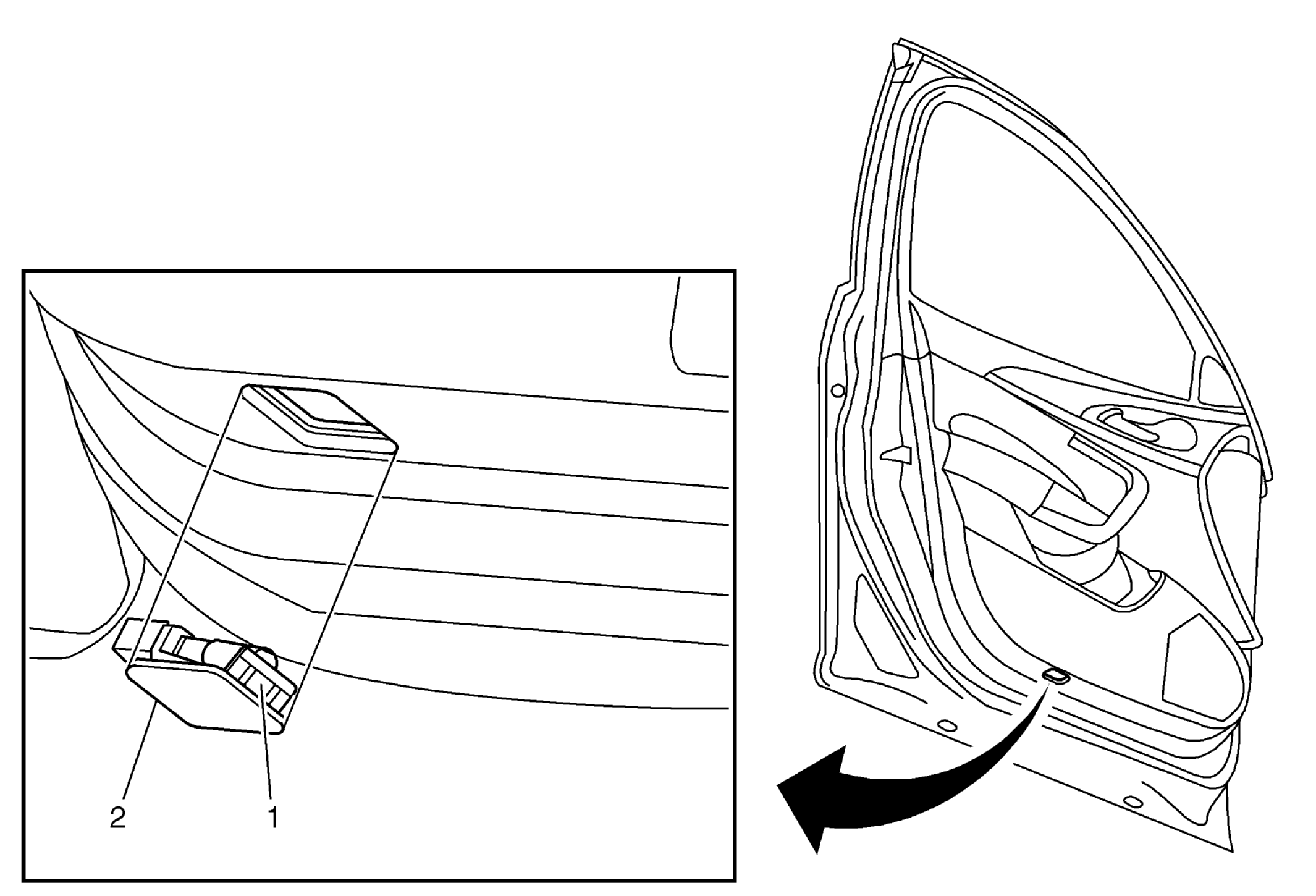

Fig 1: Front Side Door Sill Courtesy Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Side Door Sill Courtesy Lamp Retainer TIP:  Use a small flat-bladed tool to pull the right side down out from the front side door trim panel opening.
2	Front Side Door Sill Courtesy Lamp Procedure  Disconnect the front side door sill courtesy lamp electrical connector.
