Front Fog Lamp Bulb Replacement

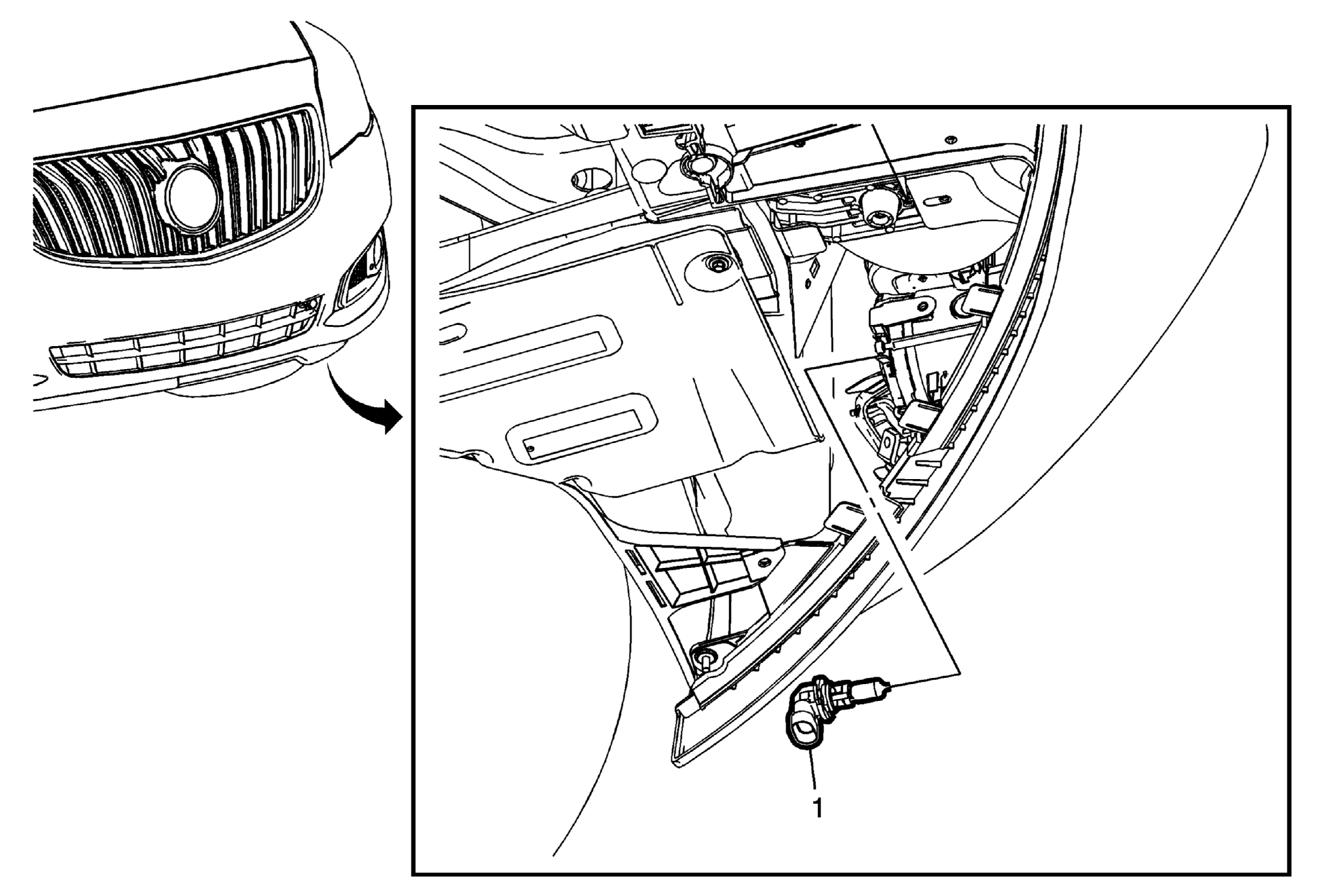

Fig 1: Front Fog Lamp Bulb

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Front Fog Lamp Bulb Procedure Disconnect the electrical connector Rotate the front fog lamp bulb counterclockwise and pull straight back to remove from the front fog lamp.

Callout

Component Name

Preliminary Procedure
Raise the vehicle. Refer to Lifting and Jacking the Vehicle .

Front Fog Lamp Bulb

Procedure

Disconnect the electrical connector
Rotate the front fog lamp bulb counterclockwise and pull straight back to remove from the front fog lamp.
