Front Floor Flood Lamp Replacement

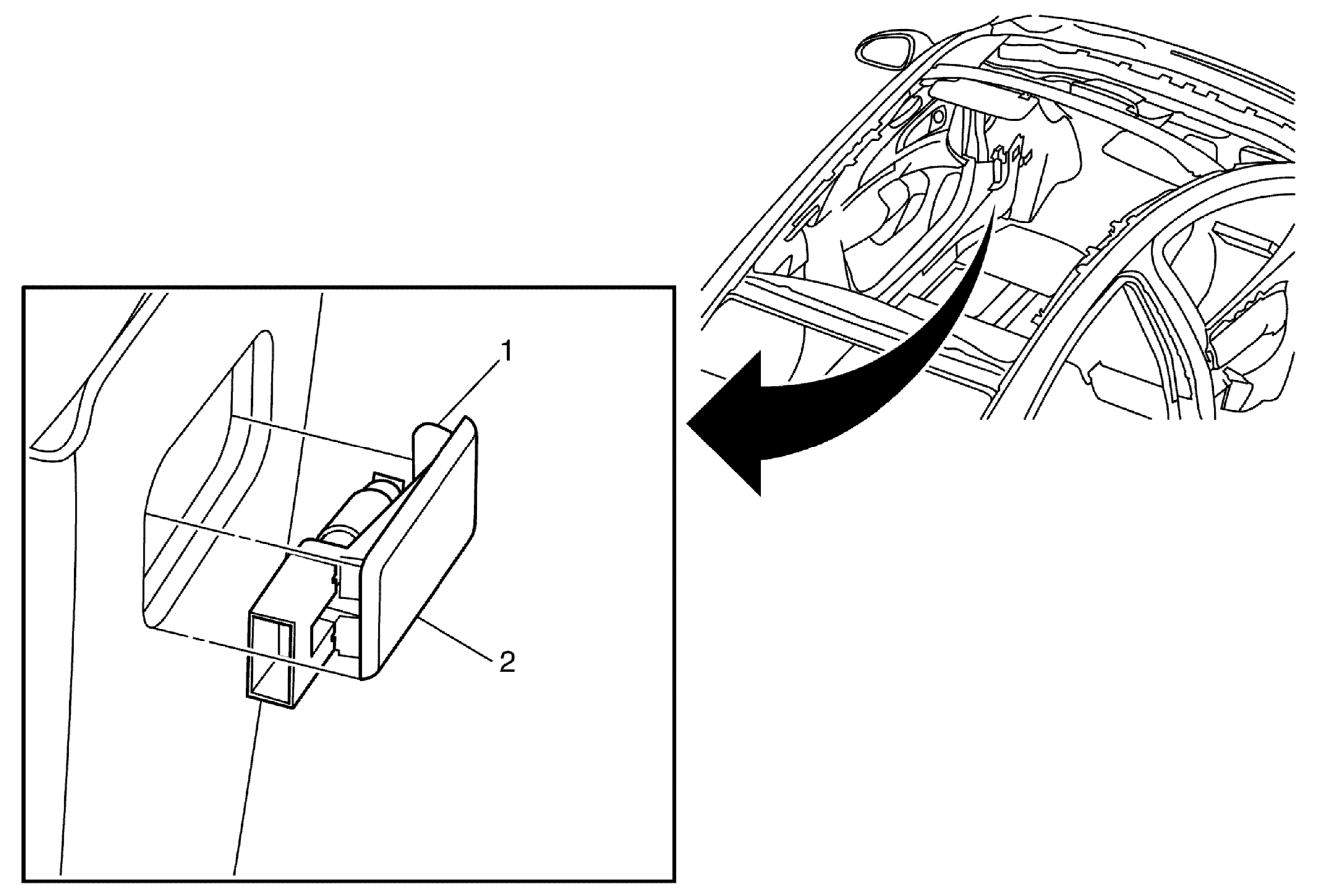

Fig 1: Front Floor Flood Lamp
GM2019760Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Floor Flood Lamp Retainer
TIP:  Use a small flat-bladed tool to pull the right side down out from the front and rear side door sill trim plate opening.
2 Front Floor Flood Lamp
Procedure
Disconnect the front floor flood lamp electrical connector.
