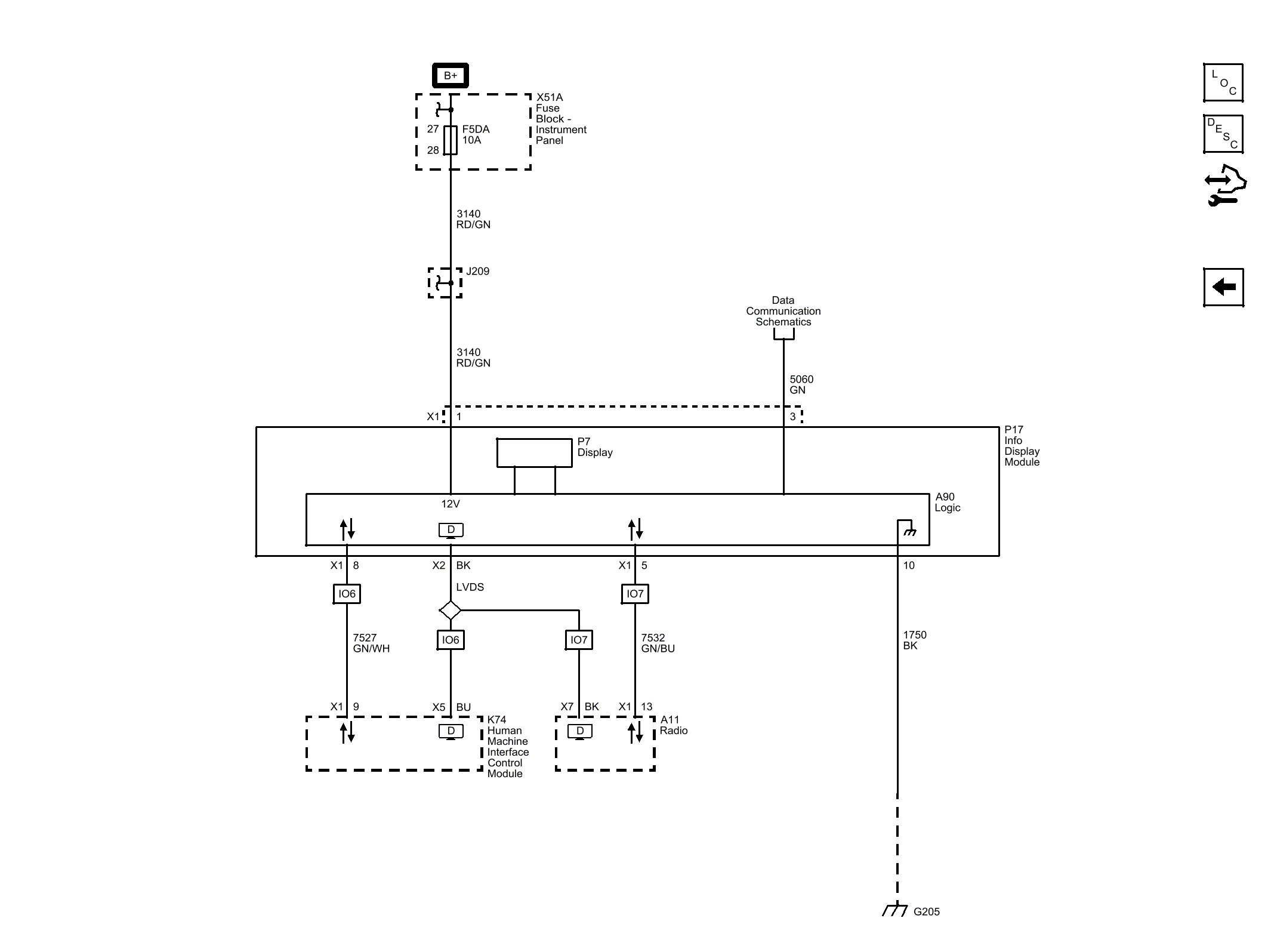

Home >> Buick >> 2015 >> Regal GS, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Infotainment >> Cellular System, Entertainment System, And Navigation System - Schematic Wiring Diagrams >> Schematic WiringDiagrams >> Radio/Navigation System Wiring Schematics >> Info Display (CZ2)
