Human Machine Interface and Display, Power, Ground, and Serial Data (except CZ2)

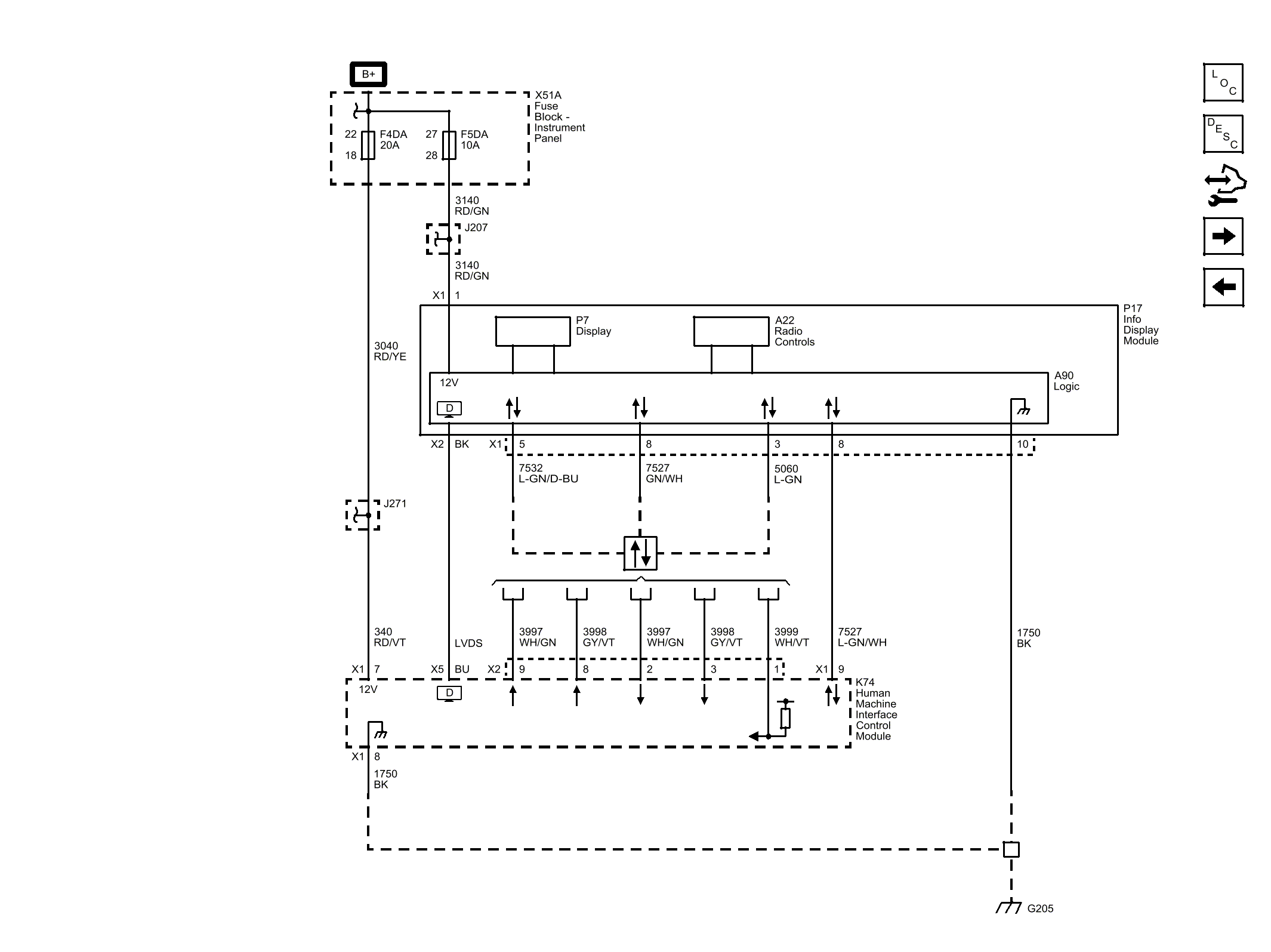

Fig 1: Human Machine Interface and Display, Power, Ground, and Serial Data (except CZ2)
GM3768461Courtesy of GENERAL MOTORS COMPANY
