Power, Ground, Serial Data, Antennas, and Microphone (except CZ2)

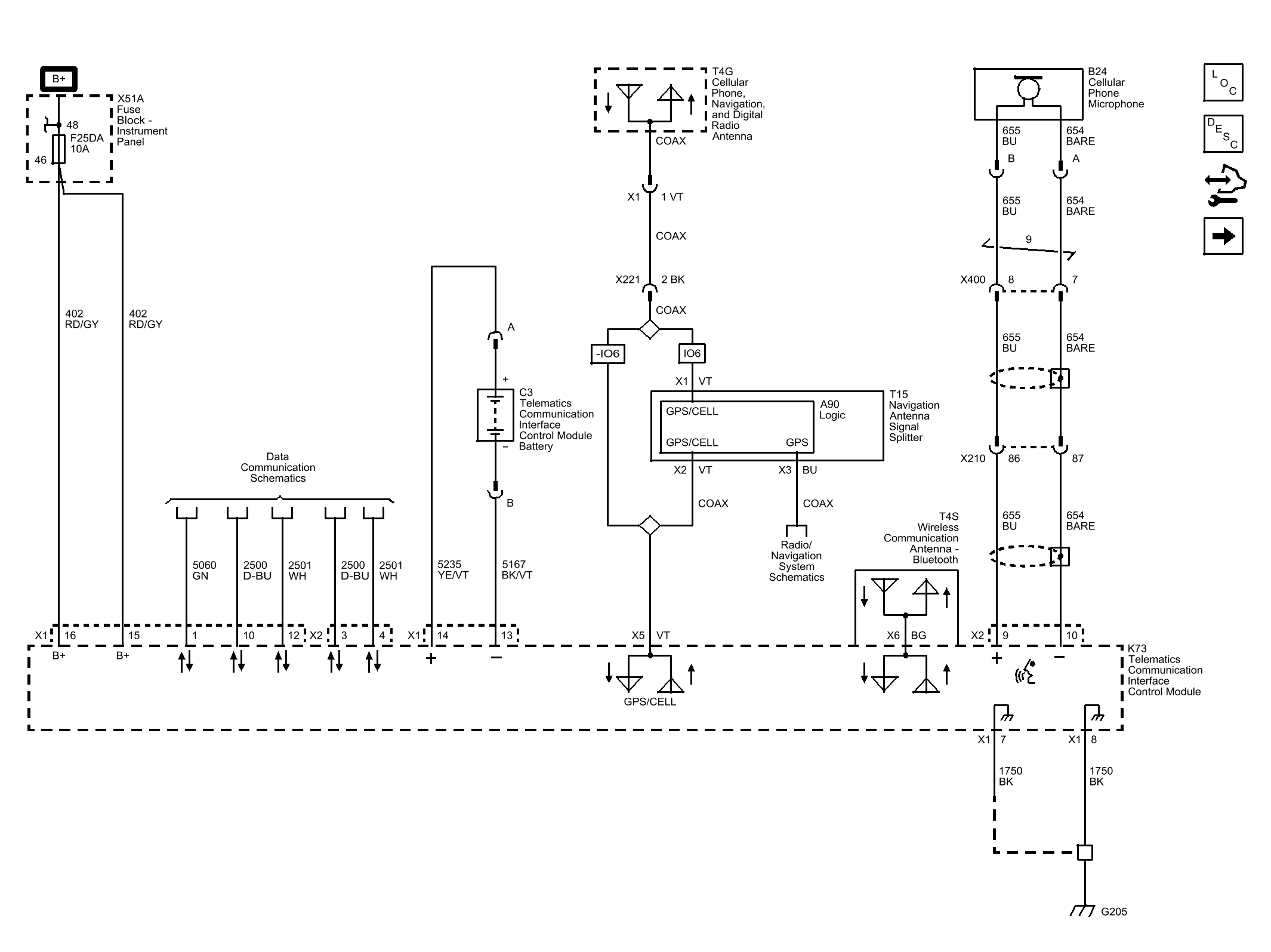

Fig 1: Power, Ground, Serial Data, Antennas, and Microphone (except CZ2)

GM3768775

Courtesy of GENERAL MOTORS COMPANY
