Radio Speaker Amplifier Replacement

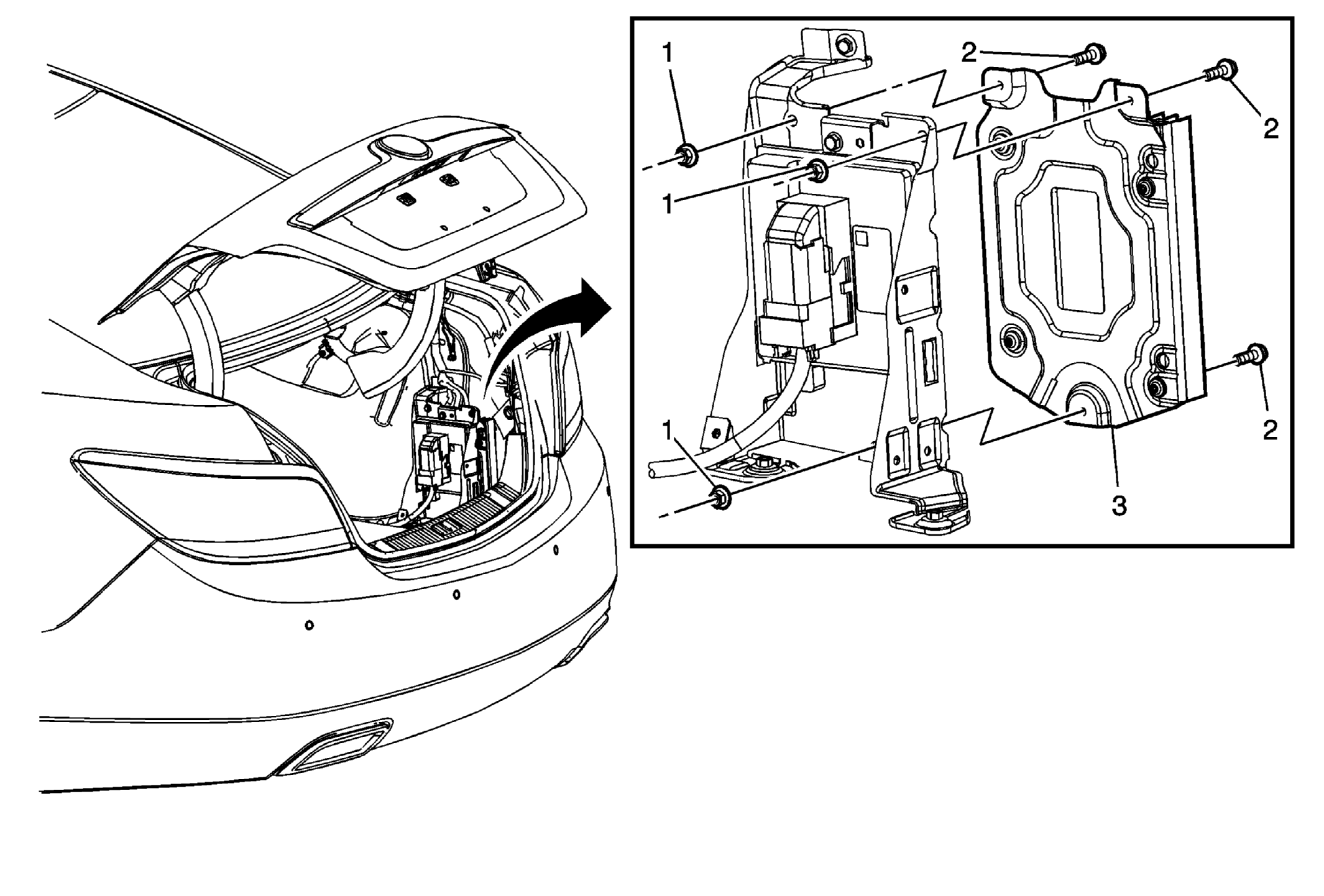

Fig 1: Radio Speaker Amplifier & Mounting Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment side trim panel. Refer to Rear Compartment Side Trim Panel Replacement (HP6, Right Side) .
1	Radio Speaker Amplifier Nut (Qty:3) CAUTION: Refer to Fastener Caution .
2	Radio Speaker Amplifier Bolt (Qty:3)
3	Radio Speaker Amplifier Assembly Procedure Disconnect the electrical connectors. For programming and set up information, refer to Control Module References .
