Radio Rear Side Door Speaker Replacement

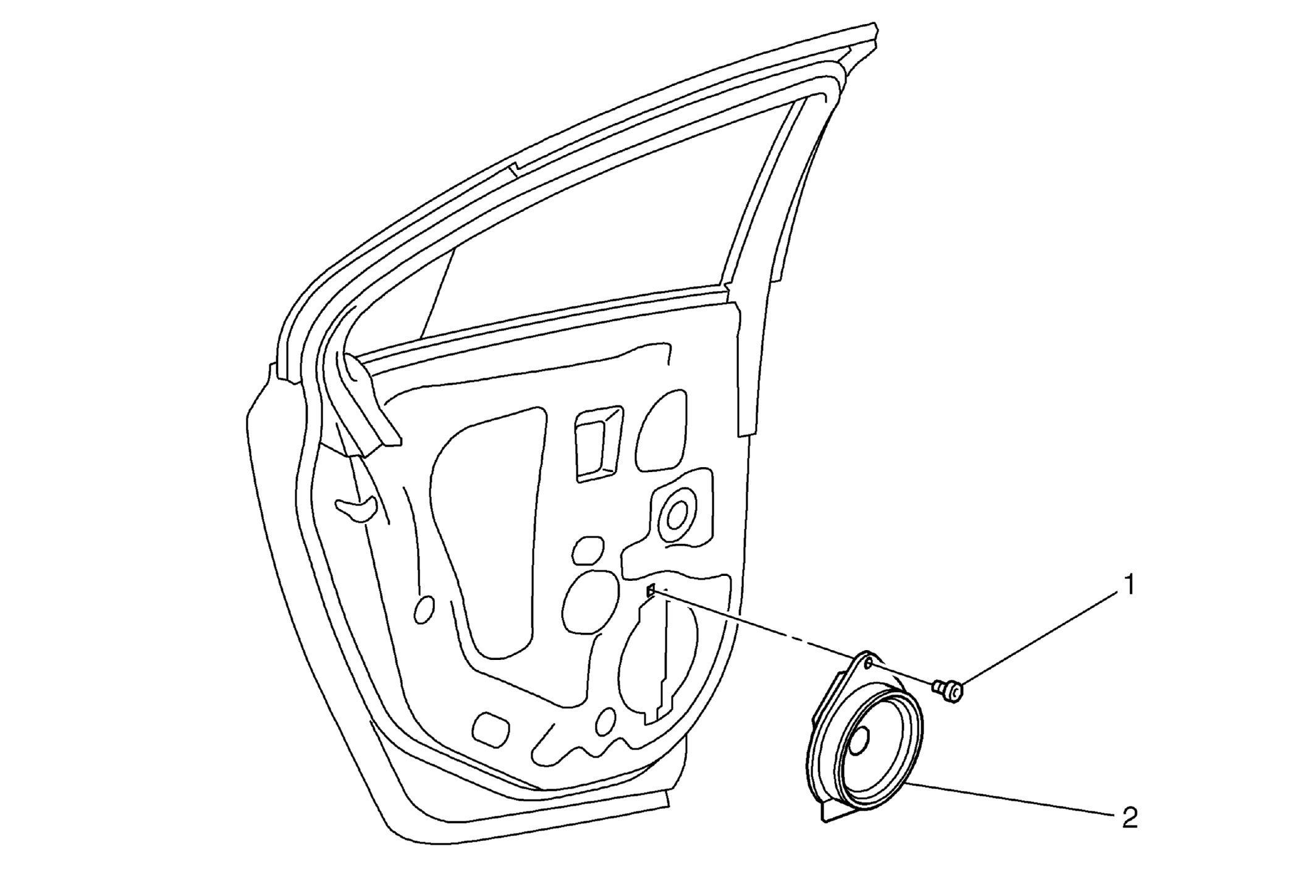

Fig 1: Radio Rear Side Door Speaker (Hatchback, Sedan)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear side door water deflector. Refer to Rear Side Door Water Deflector Replacement .
1	Radio Rear Side Door Speaker Fastener CAUTION: Refer to Fastener Caution .
2	Radio Rear Side Door Speaker Procedures Disconnect the radio rear side door speaker electrical connector. Release radio rear side door speaker retainer.

Callout

Component Name

Preliminary Procedure
Remove the rear side door water deflector. Refer to Rear Side Door Water Deflector Replacement .

Radio Rear Side Door Speaker Fastener

CAUTION:

Radio Rear Side Door Speaker

Procedures
