Radio Front Side Door Speaker Replacement

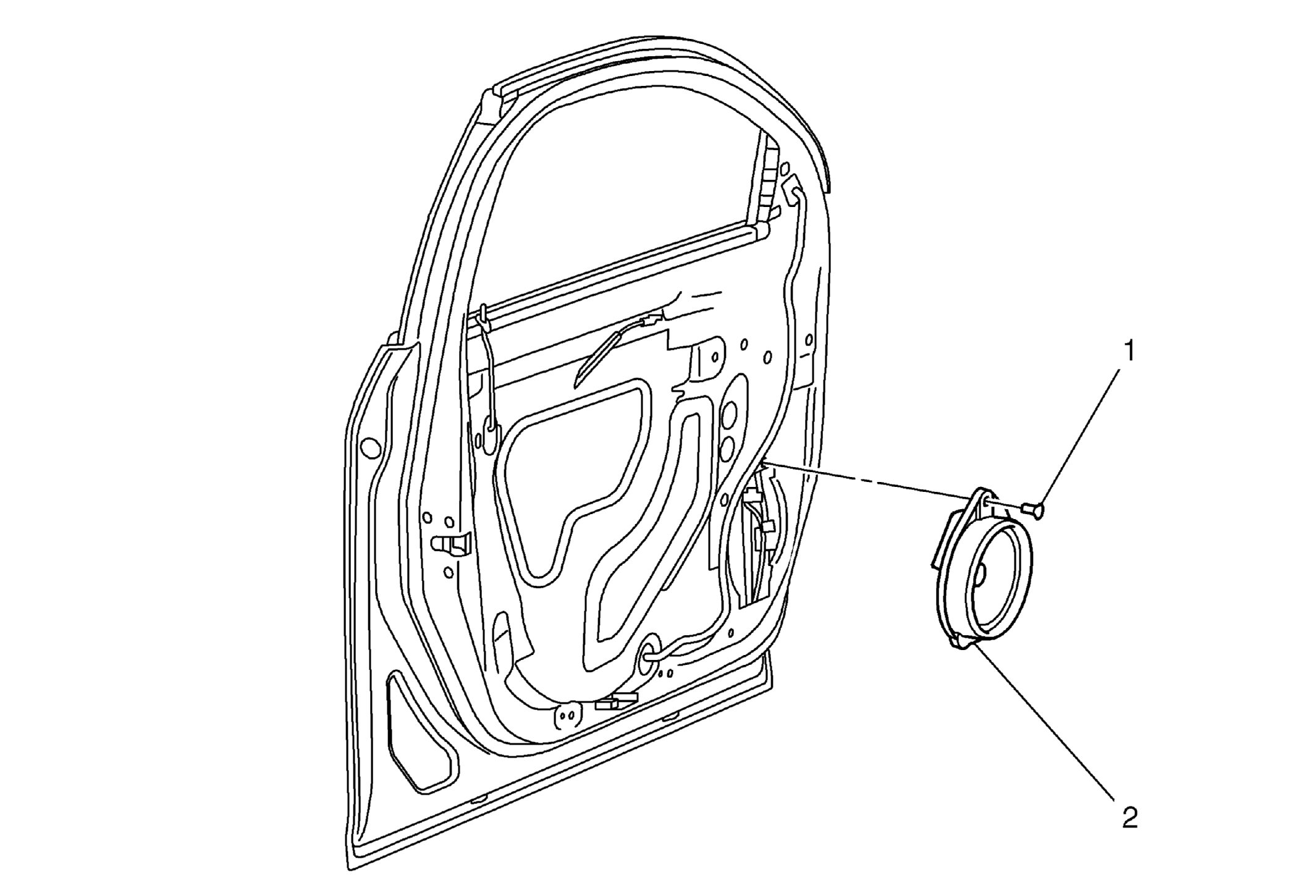

Fig 1: Radio Front Side Door Speaker & Fastener

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement .
1	Radio Front Side Door Speaker Fastener CAUTION: Refer to Fastener Caution .
2	Radio Front Side Door Speaker Procedure Disconnect the electrical connection. Release the radio front side door speaker retainer.

Callout

Component Name

Preliminary Procedure
Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement .

Radio Front Side Door Speaker Fastener

CAUTION:

Radio Front Side Door Speaker

Procedure
