Radio Control Switch Replacement (Grand Sport)

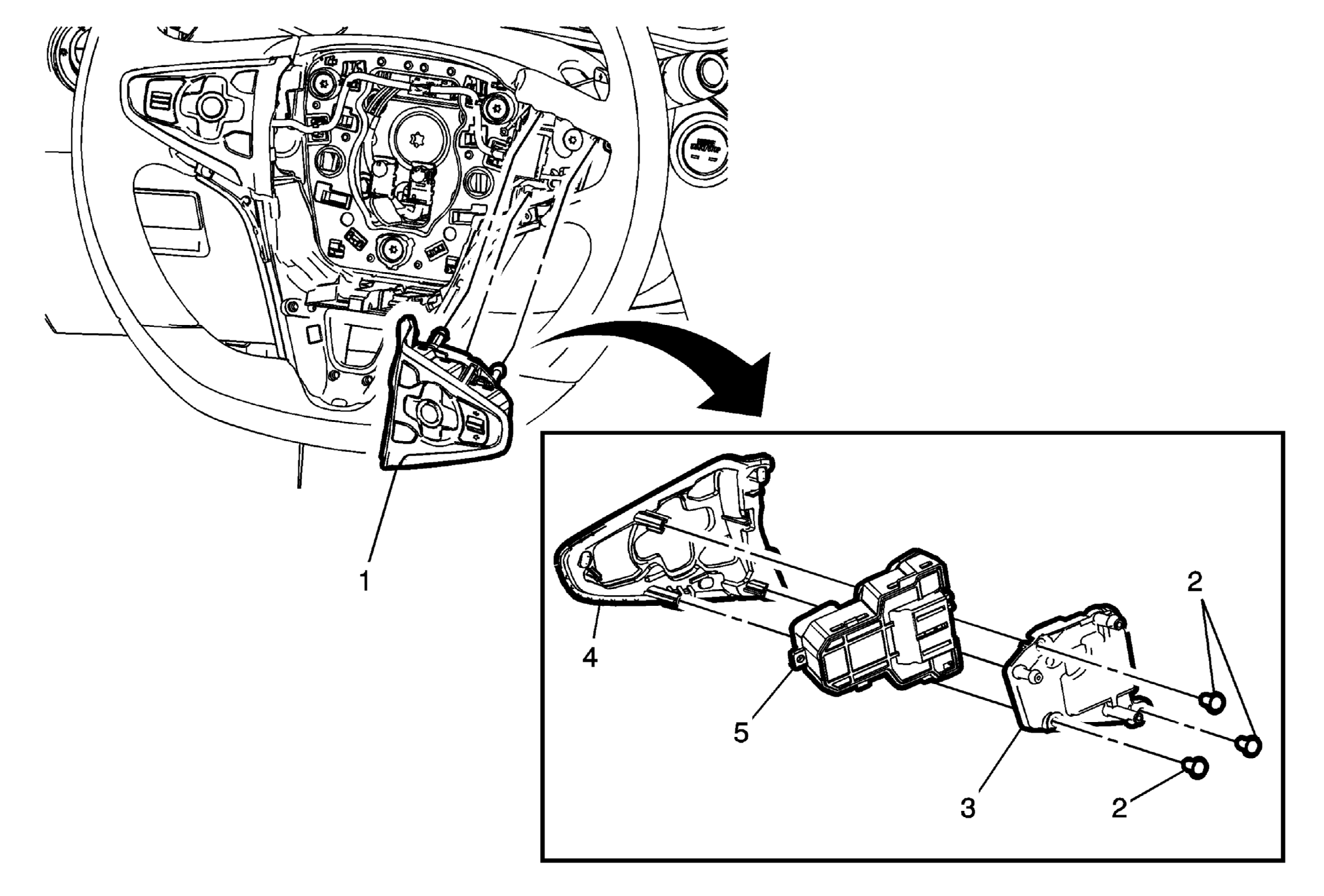

Fig 1: Radio Control Switch (Grand Sport)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Radio Control Switch Assembly Procedure Use the appropriate tool to gently release the retaining tabs on the switch assembly bezel. Disconnect the electrical connection. NOTE: Gently release tabs one by one, using care to avoid snapping the tab off.
2	Steering Wheel Switch Bracket Fastener (Qty:3) CAUTION: Refer to Fastener Caution .
3	Steering Wheel Switch Bracket
4	Steering Wheel Switch Bezel
5	Radio Control Switch
