Radio Control Switch Replacement (Except Grand Sport)

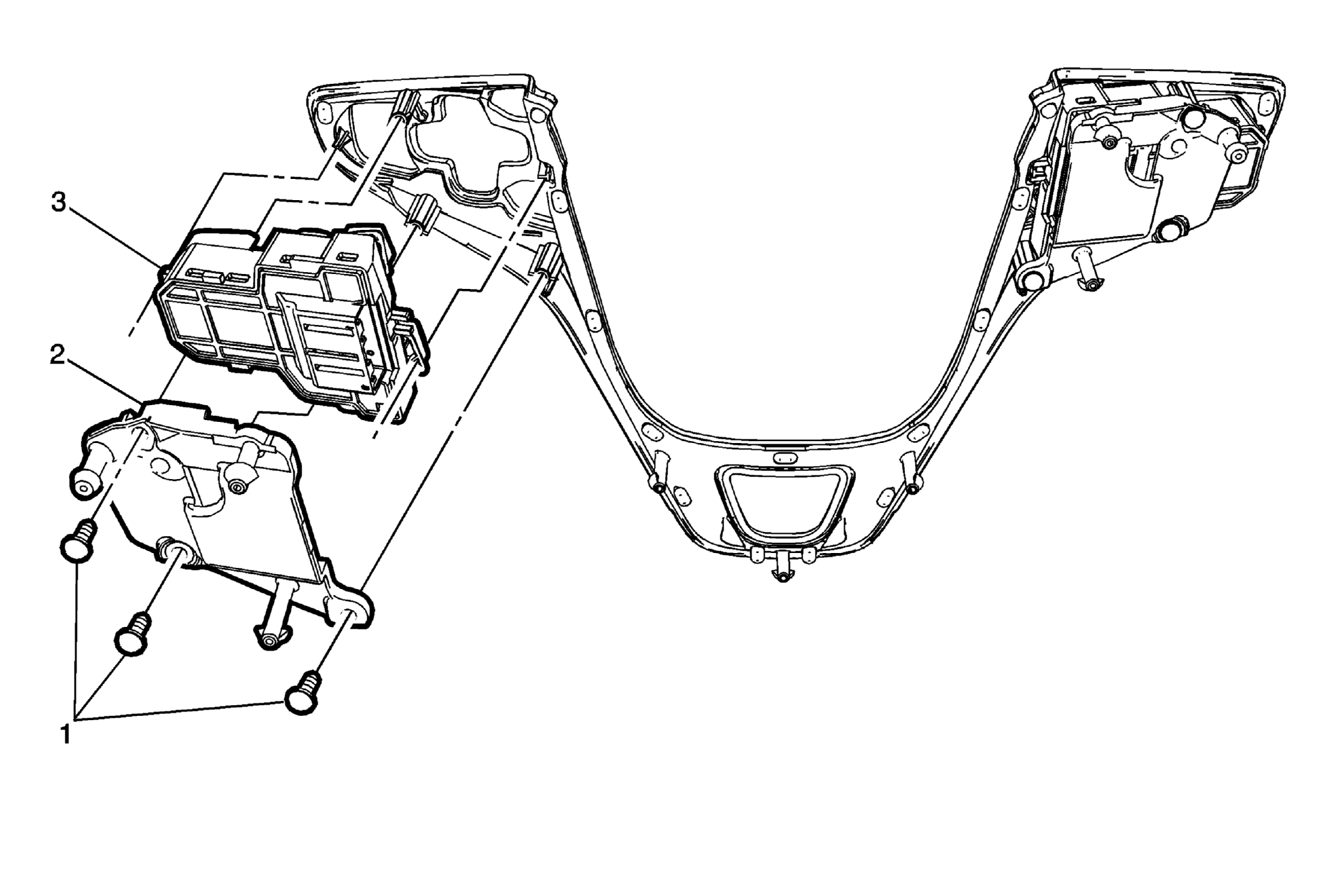

Fig 1: Radio Control Switch (Except Grand Sport)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the steering wheel spoke lower cover.
1	Steering Wheel Spoke Lower Cover Fasteners (Qty:3) CAUTION: Refer to Fastener Caution .
2	Steering Wheel Spoke Lower Cover Bracket
3	Radio Control Switch
