Radio Antenna Base Replacement

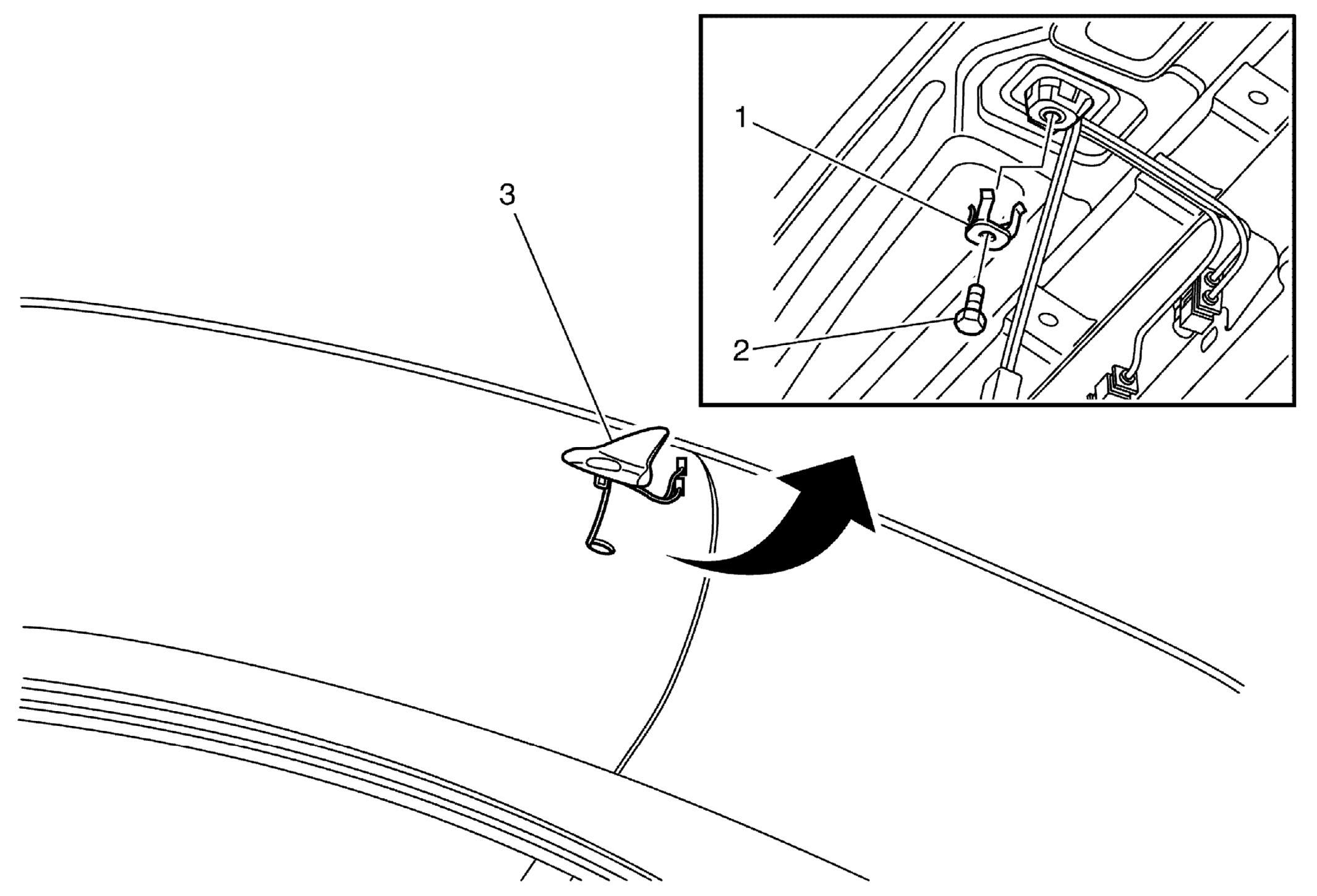

Fig 1: Radio Antenna Base, Fastener & Retainer

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the headlining trim panel. Refer to Headlining Trim Panel Replacement (With Sunroof) .
1	Radio Antenna Base Retainer
2	Radio Antenna Base Fastener
3	Radio Antenna Base Procedure Disconnect the electrical connector. Use a new retainer.
