Radio Antenna Amplifier Replacement

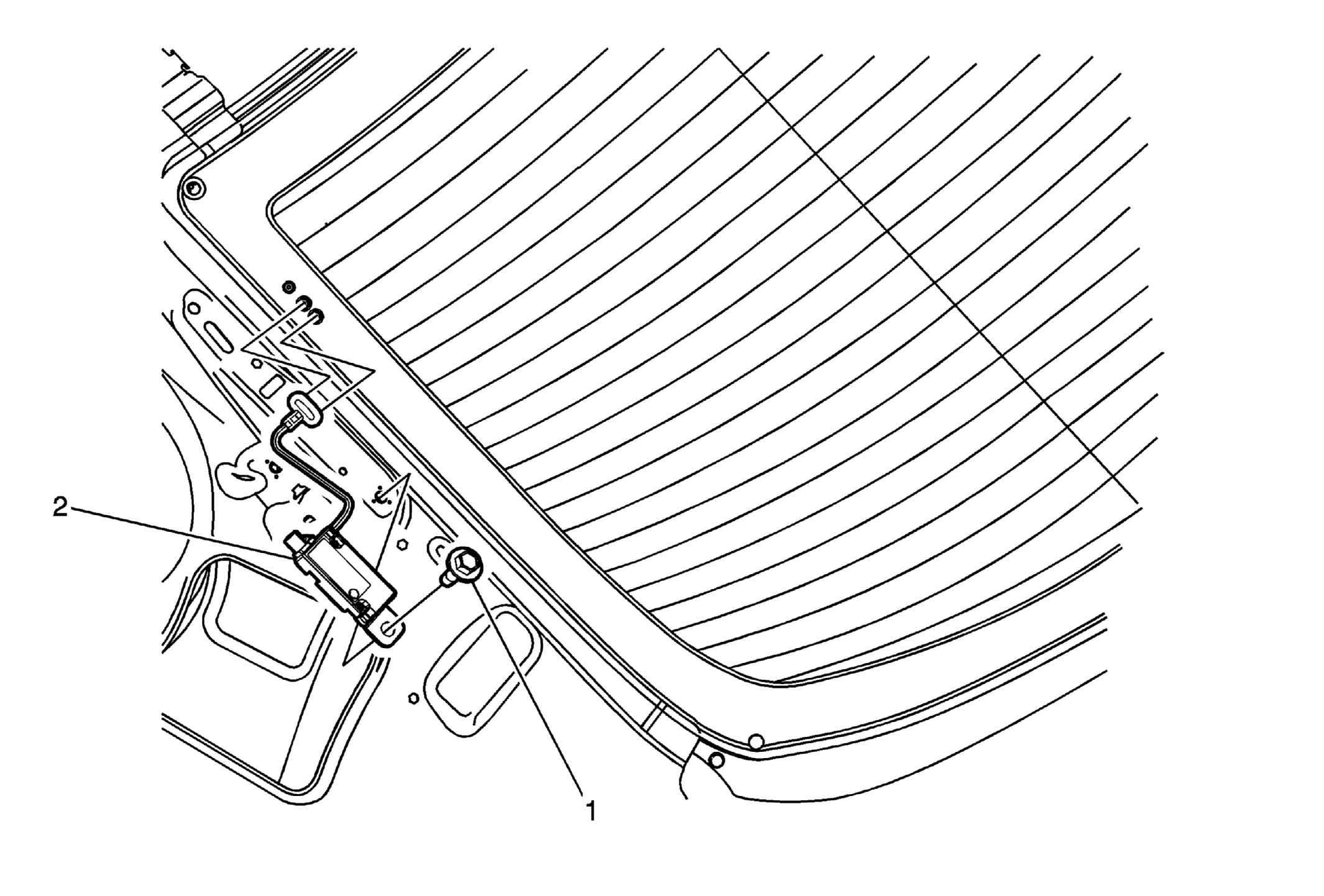

Fig 1: Radio Antenna Amplifier & Fastener

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the right body lock pillar upper trim panel. Refer to Body Lock Pillar Upper Trim Panel Replacement .
1	Radio Antenna Amplifier Fastener CAUTION: Refer to Fastener Caution . Tighten 8 N.m (71 lb in)
2	Radio Antenna Amplifier Procedure Disconnect the electrical connector.
