Cruise Control Switch Replacement (Grand Sport)

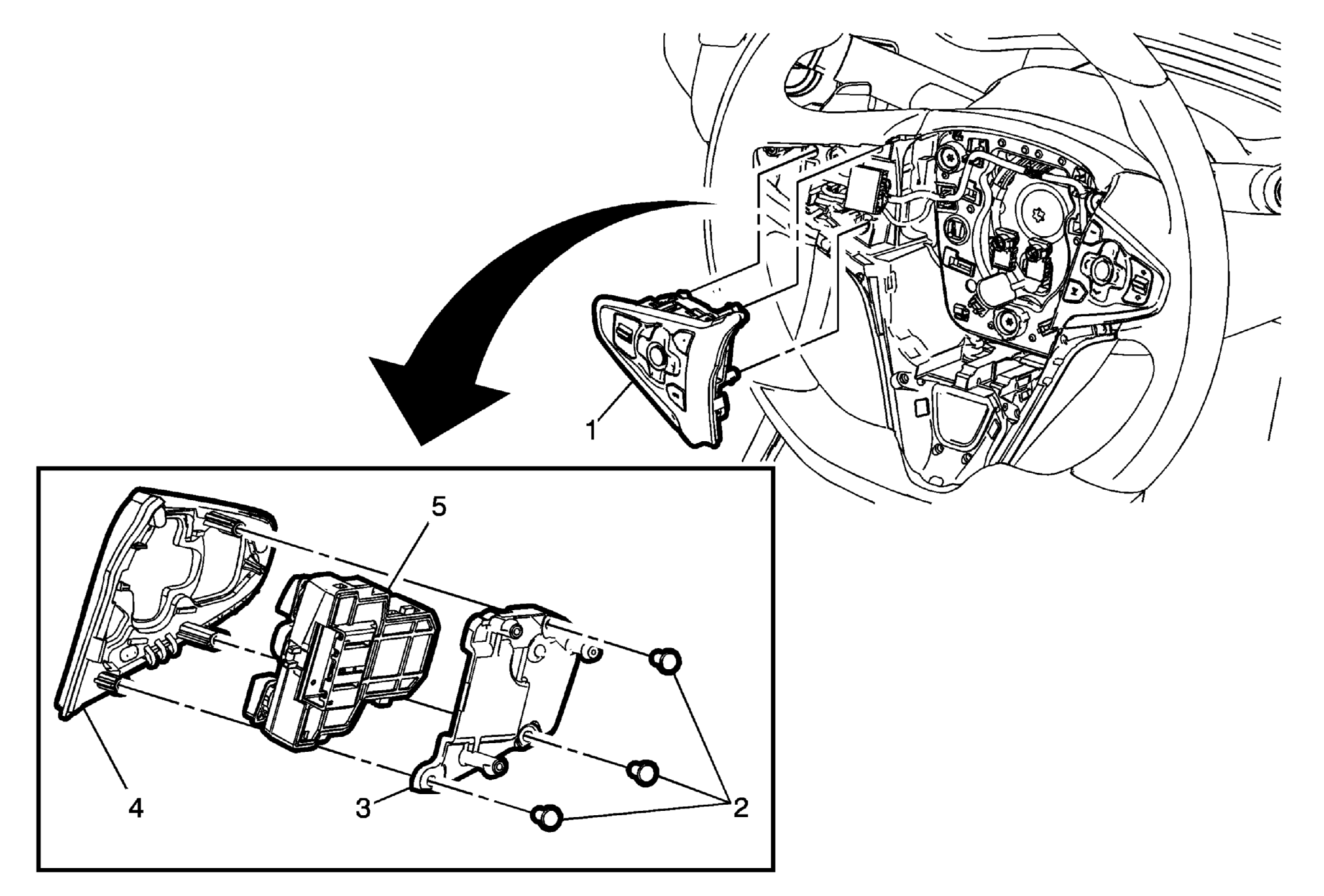

Fig 1: Cruise Control Switch (Grand Sport)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Cruise Control Switch Assembly Procedures Use the appropriate tool to gently release the retaining tabs on the switch assembly bezel. NOTE: Gently release tabs one by one, using care to avoid snapping the tab off. Disconnect the electrical connection.
2	Steering Wheel Switch Bracket Fasteners (Qty:3) CAUTION: Refer to Fastener Caution .
3	Steering Wheel Switch Bracket
4	Steering Wheel Switch Bezel
5	Cruise Control Switch
