Powertrain High Speed GMLAN (LEA/LTG/LAF/LDK)

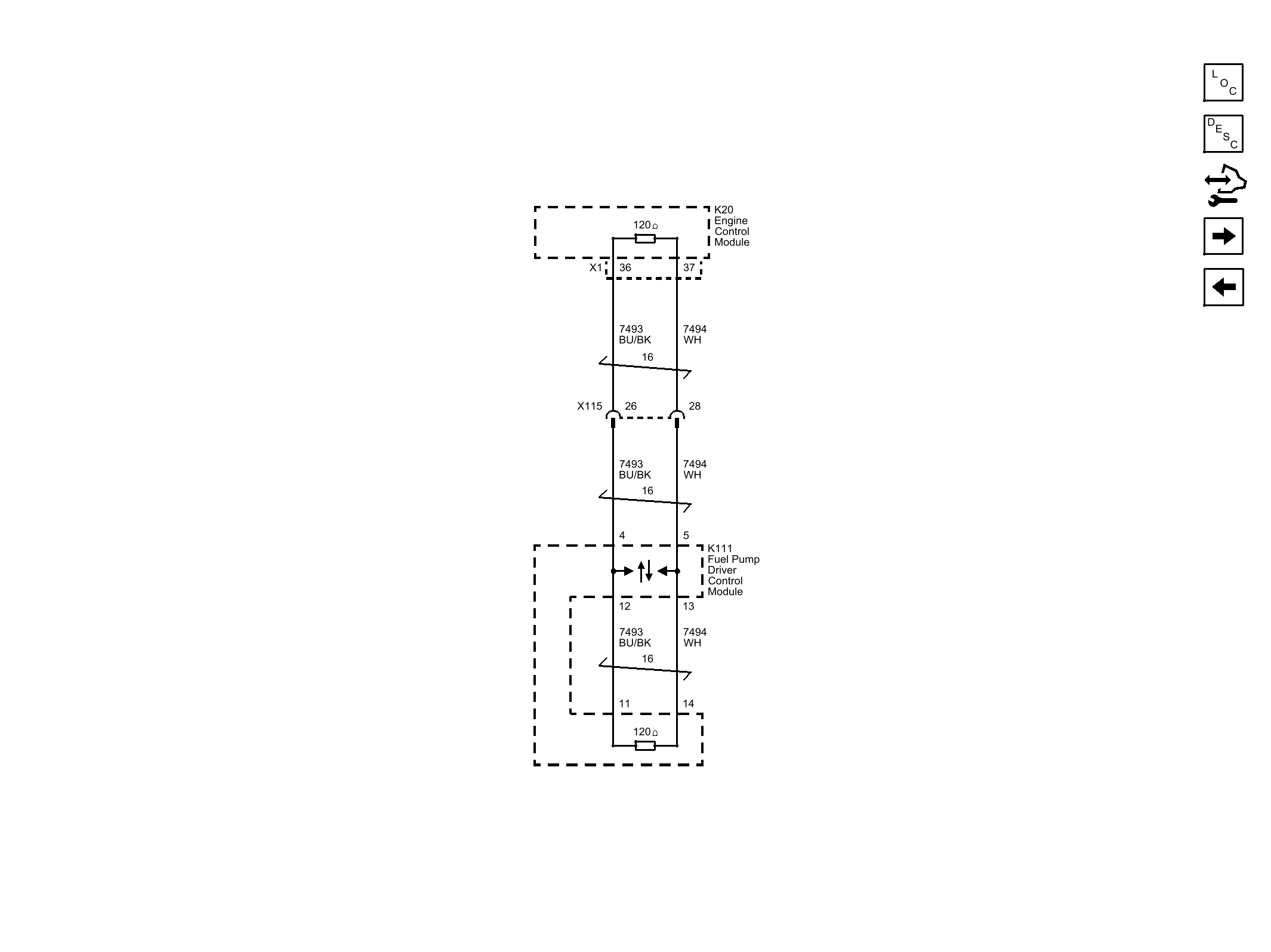

Fig 1: Powertrain High Speed GMLAN (LEA/LTG/LAF/LDK)

GM3769743

Courtesy of GENERAL MOTORS COMPANY
