Local Interconnect Network (LIN) Bus (2 of 2) (CZ2)

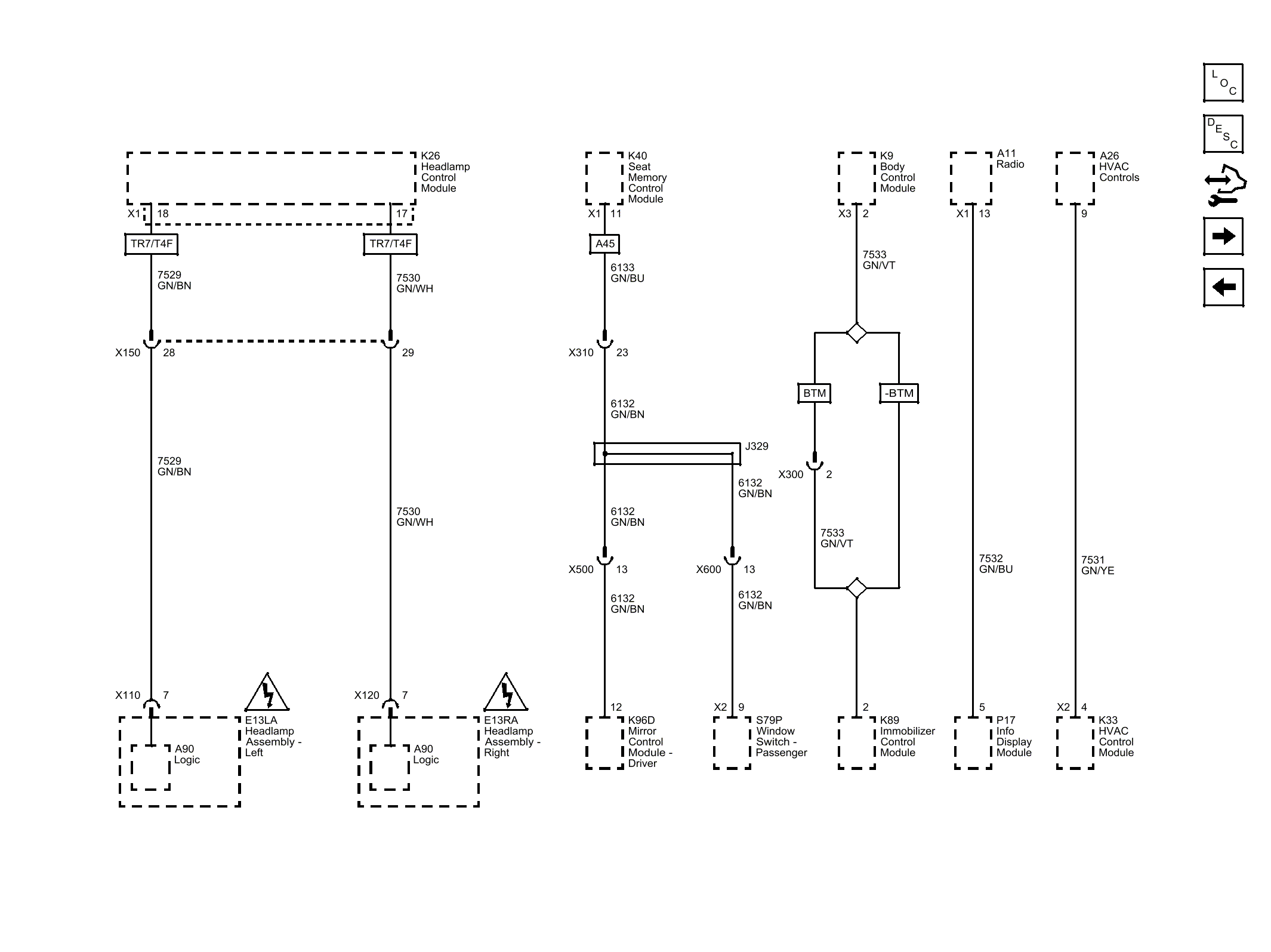

Fig 1: Local Interconnect Network (LIN) Bus (2 of 2) (CZ2)

GM3769782

Courtesy of GENERAL MOTORS COMPANY
