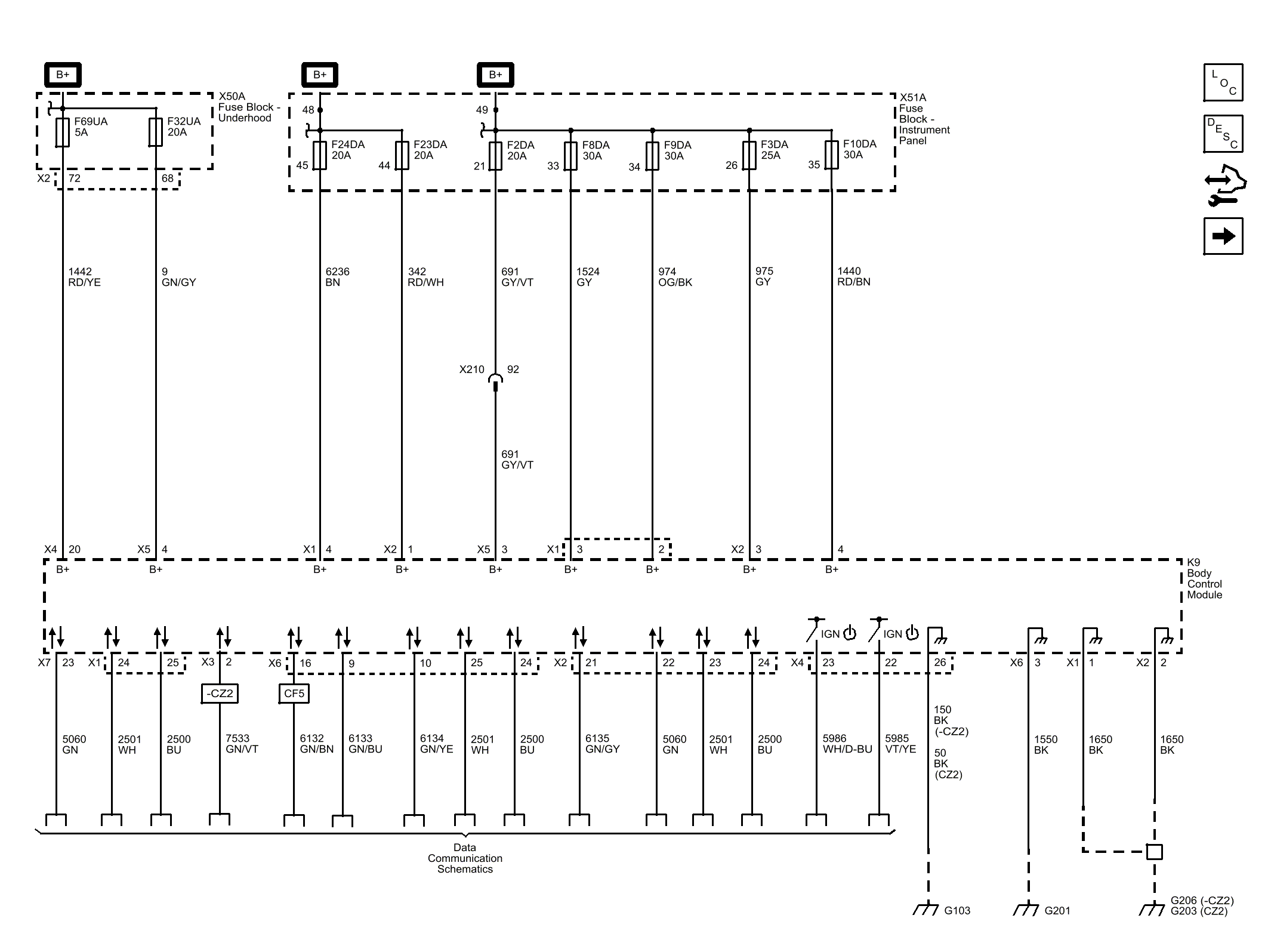

Home >> Buick >> 2015 >> Regal GS, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Communication Devices >> Data Communications - Wiring Schematic Diagrams >> Schematic Wiring Diagrams >> Body Control System Wiring Schematics >> Power, Ground, and Serial Data
