F5UA, F13UA, F16UA, F17UA, F18UA, F19UA, F52UA, F53UA, F54UA and F57UA Fuses (except CZ2)

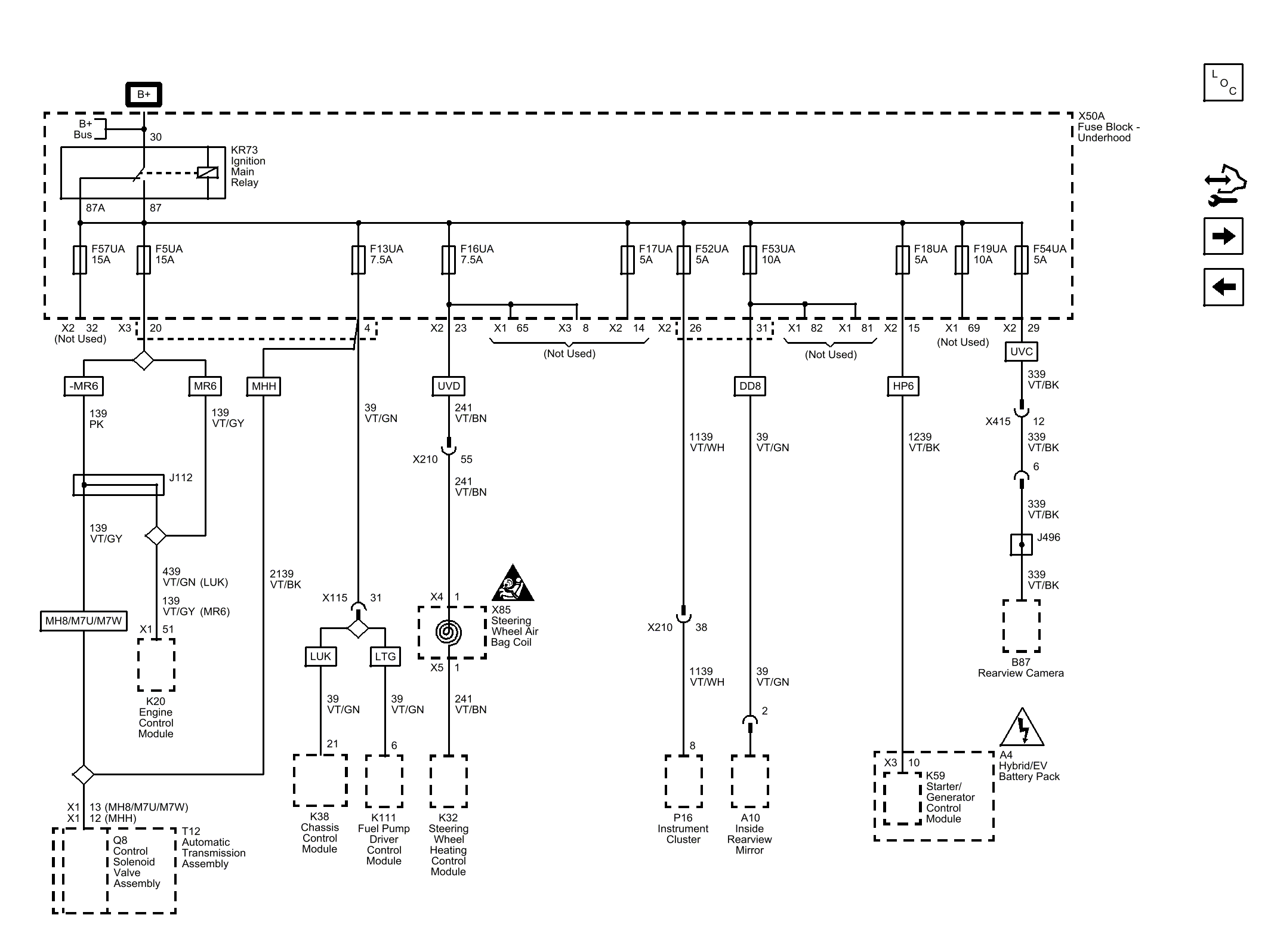

Fig 1: F5UA, F13UA, F16UA, F17UA, F18UA, F19UA, F52UA, F53UA, F54UA and F57UA Fuses (except CZ2)
GM3769954Courtesy of GENERAL MOTORS COMPANY
