F48UA, F51UA, and F56UA Fuses (except CZ2)

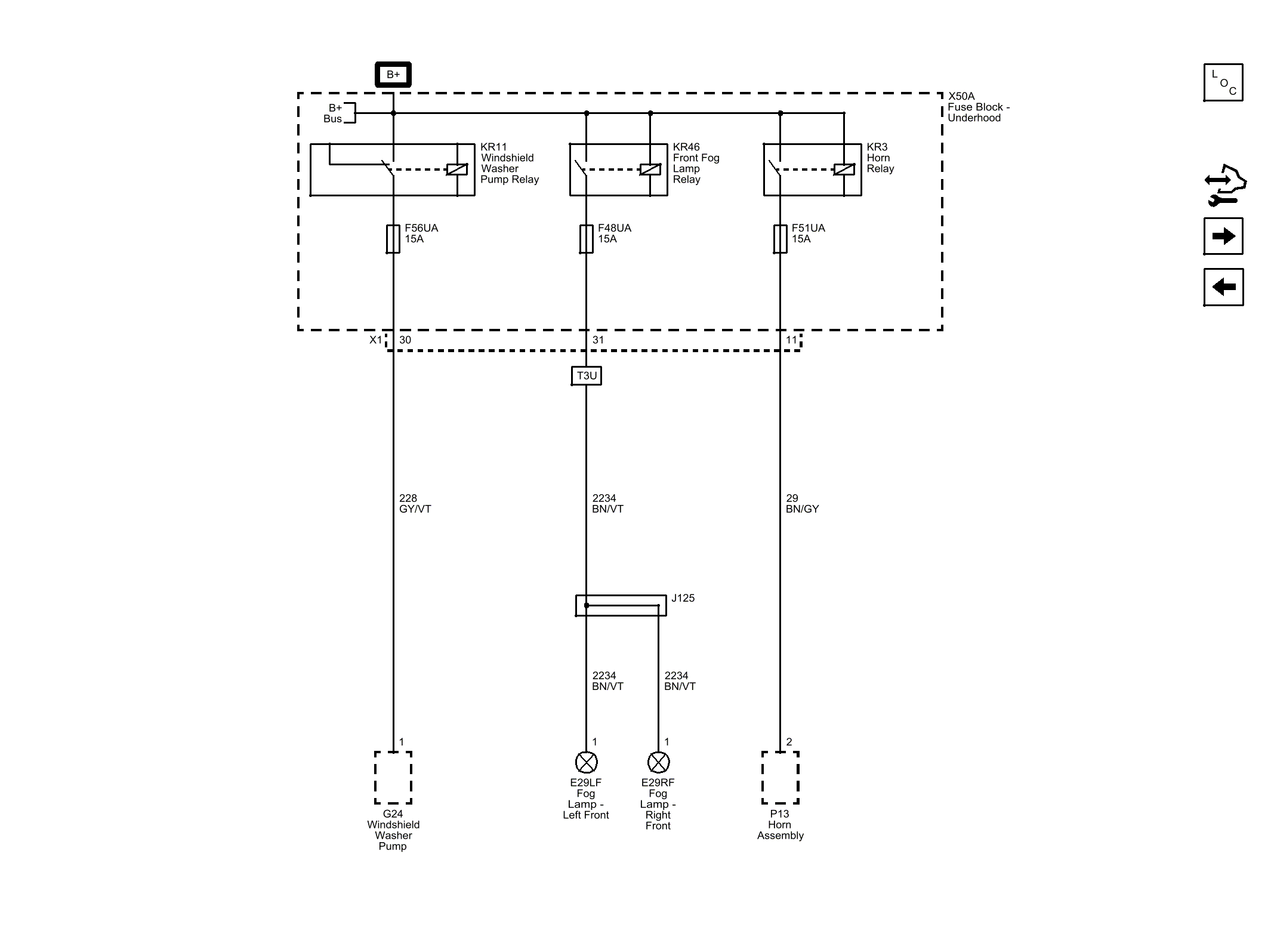

Fig 1: F48UA, F51UA, and F56UA Fuses (except CZ2)

GM3769957

Courtesy of GENERAL MOTORS COMPANY
