F37UA, F38UA, F44UA, F49UA and F50UA Fuses

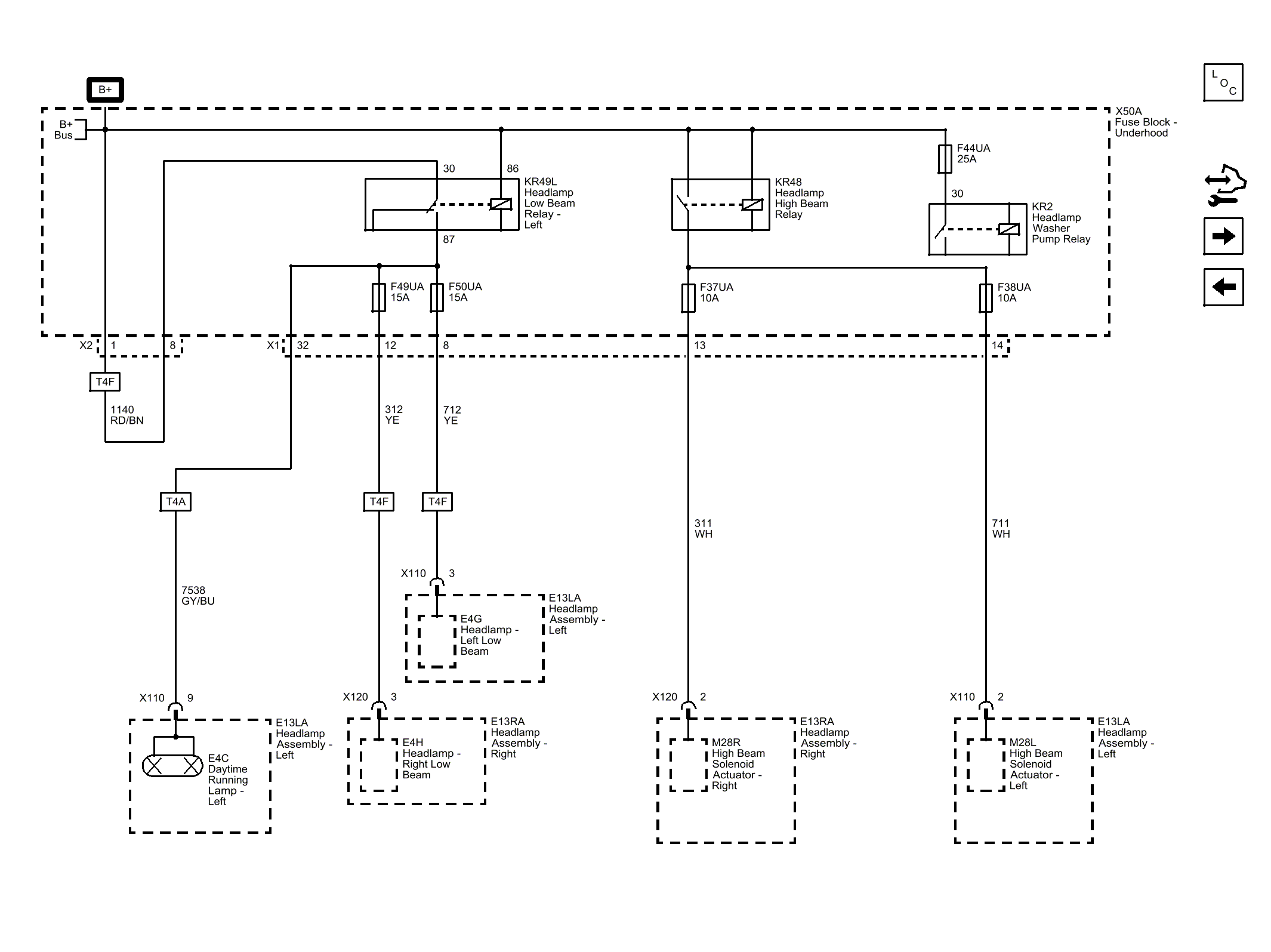

Fig 1: F37UA, F38UA, F44UA, F49UA and F50UA Fuses

GM3770033

Courtesy of GENERAL MOTORS COMPANY
