F31UA, F48UA, F51UA, F56UA, and F62UA Fuses (CZ2)

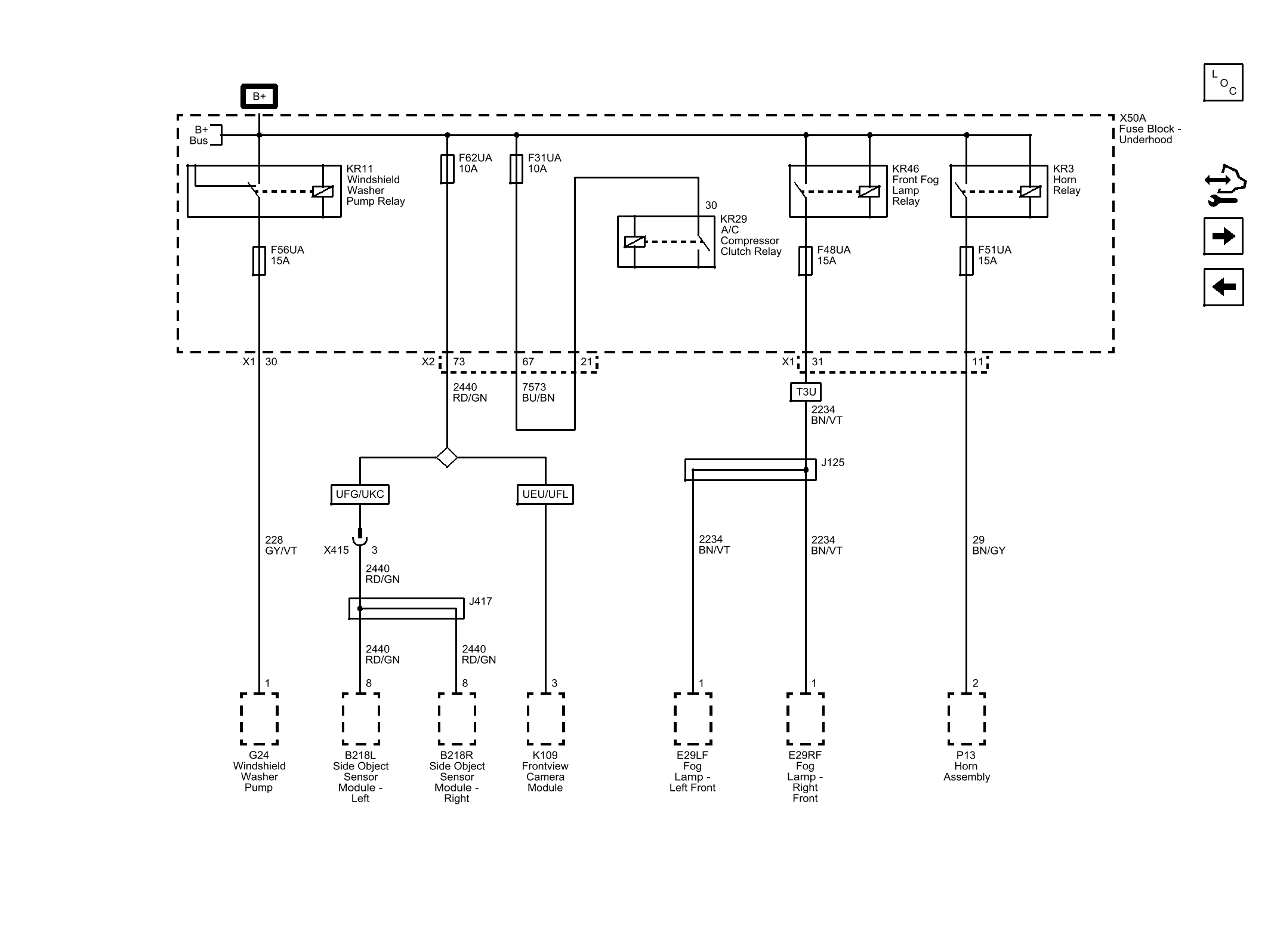

Fig 1: F31UA, F48UA, F51UA, F56UA, and F62UA Fuses (CZ2)

GM3770027

Courtesy of GENERAL MOTORS COMPANY
