F25UA, F27UA, F34UA, F39UA, F40UA, F41UA, F43UA, F55UA, F62UA, F64UA, F67UA, and F71UA Fuses (except CZ2)

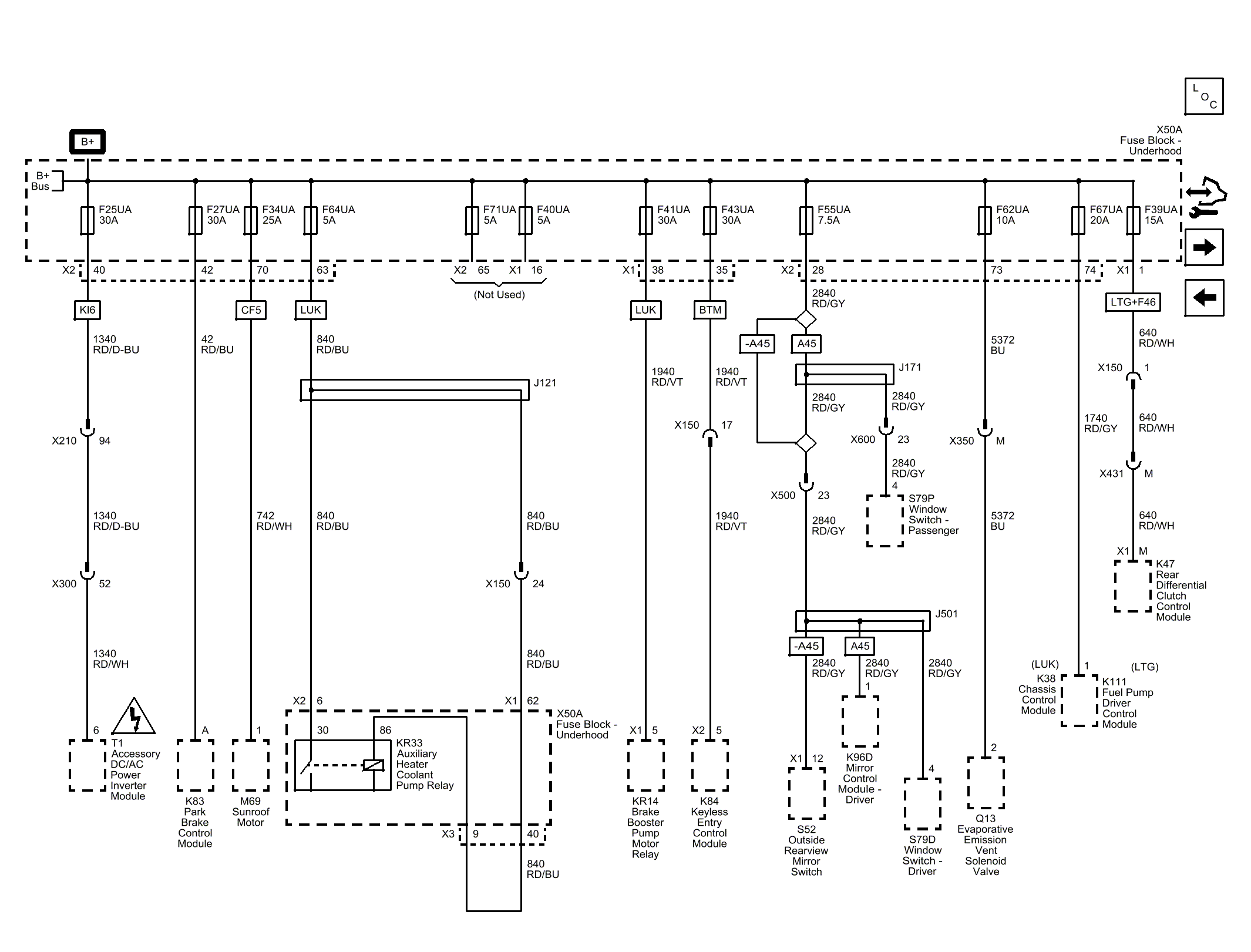

Fig 1: F25UA, F27UA, F34UA, F39UA, F40UA, F41UA, F43UA, F55UA, F62UA, F64UA, F67UA, and F71UA Fuses (except CZ2)
GM3769932Courtesy of GENERAL MOTORS COMPANY
