F21UA, F24UA, F32UA, F33UA, F35UA, F69UA, and F70UA Fuses (CZ2)

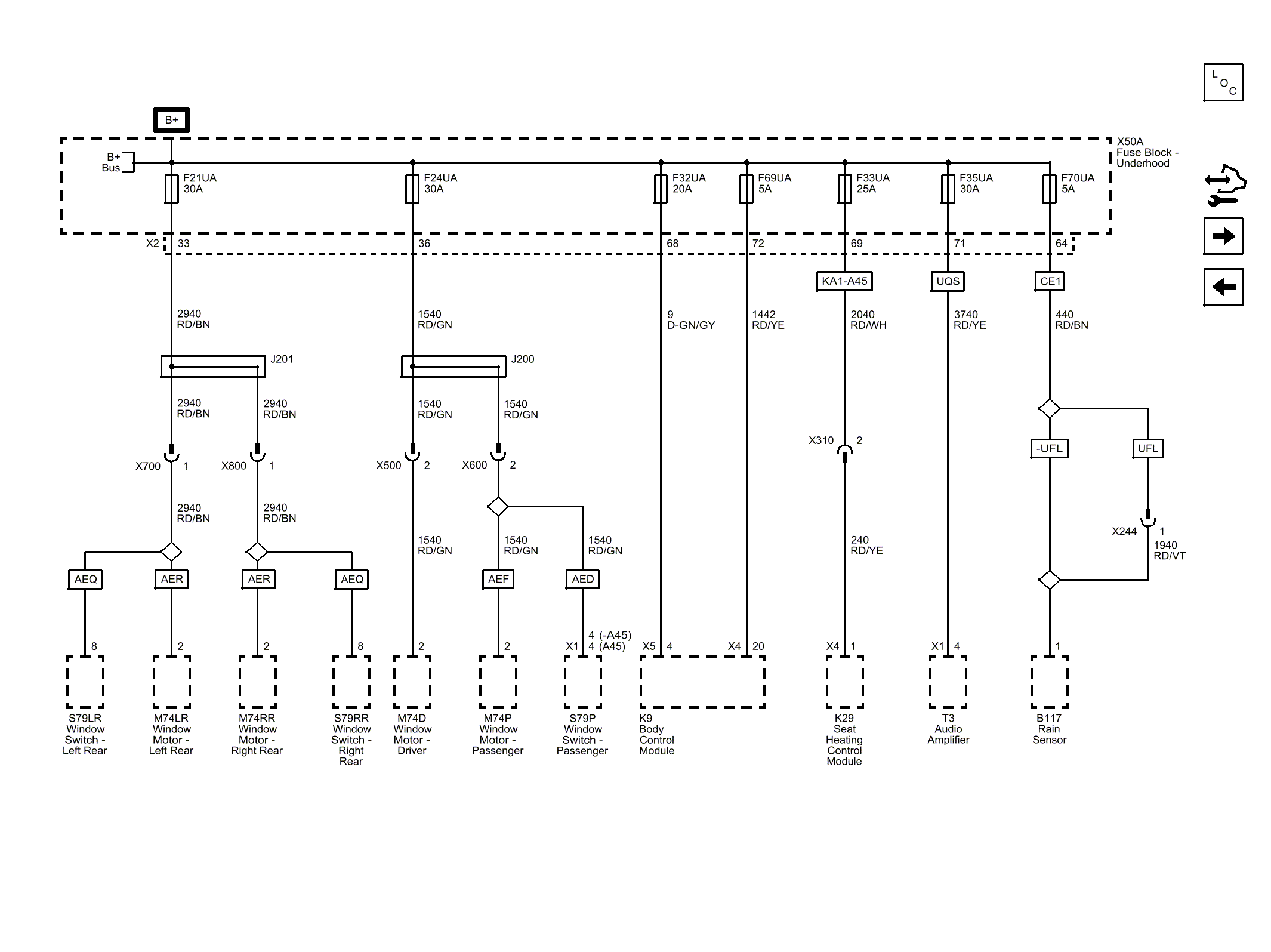

Fig 1: F21UA, F24UA, F32UA, F33UA, F35UA, F69UA, and F70UA Fuses (CZ2)

GM3770006

Courtesy of GENERAL MOTORS COMPANY
