F1UA, F2UA, F7UA, F14UA, F22UA, F26UA, F29UA, F30UA, and F36UA Fuses (except CZ2)

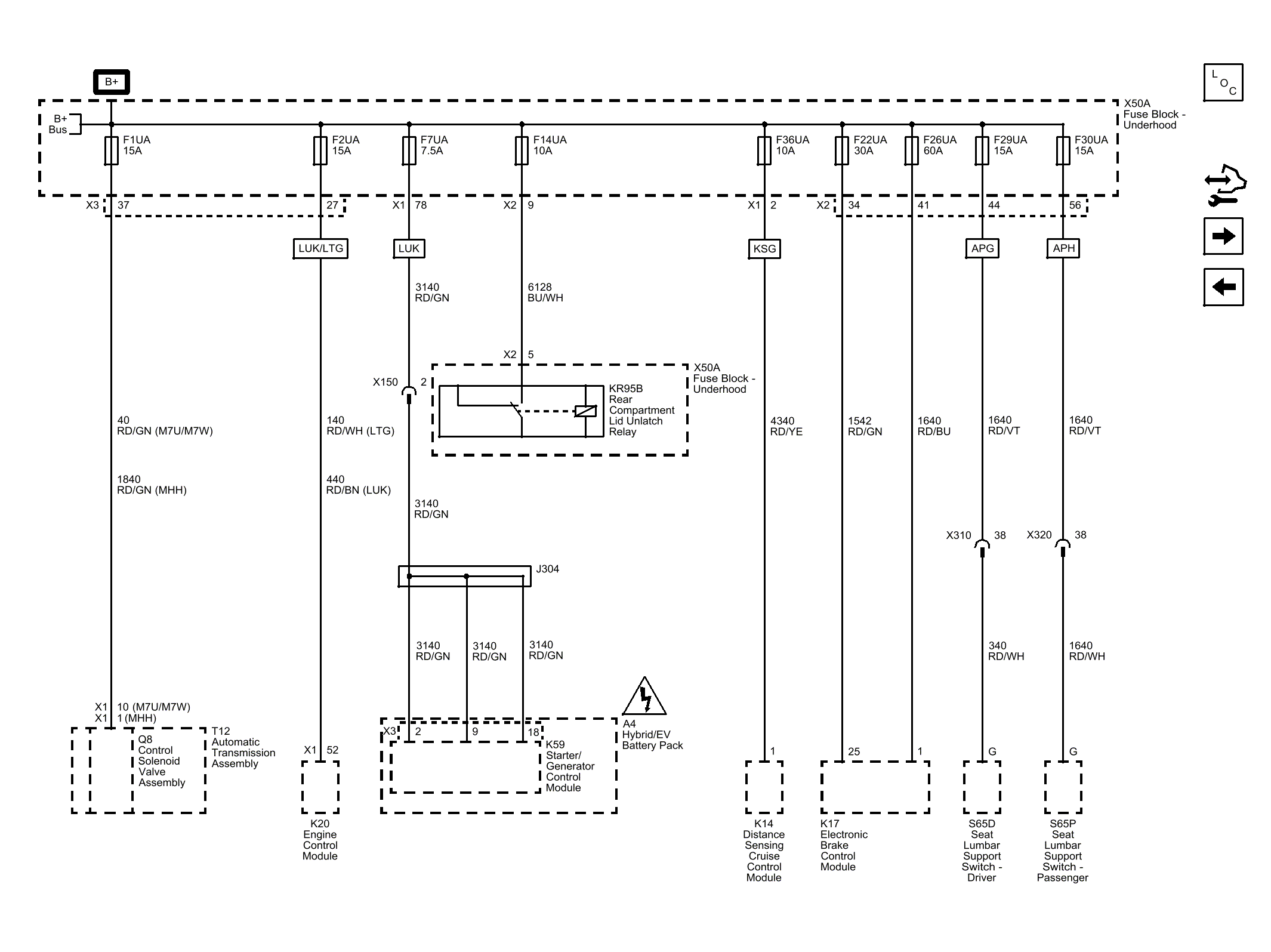

Fig 1: F1UA, F2UA, F7UA, F14UA, F22UA, F26UA, F29UA, F30UA, and F36UA Fuses (except CZ2)
GM3769927Courtesy of GENERAL MOTORS COMPANY
