F1UA, F2UA, F3UA, F4UA, F7UA, F14UA, F22UA, F23UA, F26UA, F29UA, F30UA, and F31UA Fuses (CZ2)

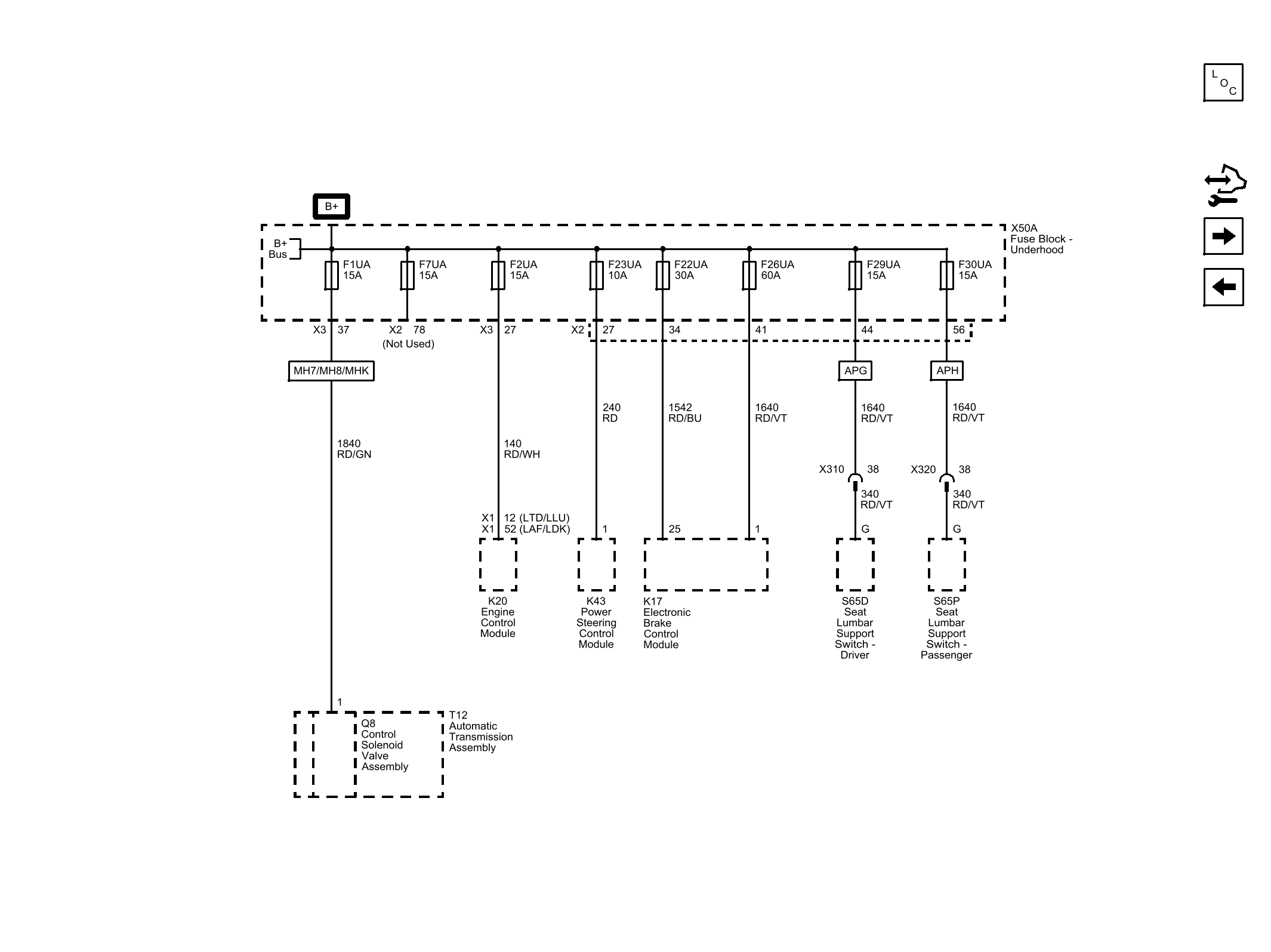

Fig 1: F1UA, F2UA, F3UA, F4UA, F7UA, F14UA, F22UA, F23UA, F26UA, F29UA, F30UA, and F31UA Fuses (CZ2)
GM3769993Courtesy of GENERAL MOTORS COMPANY
