F11UA, F46UA, and F47UA (LAF or LTD) Fuses (CZ2)

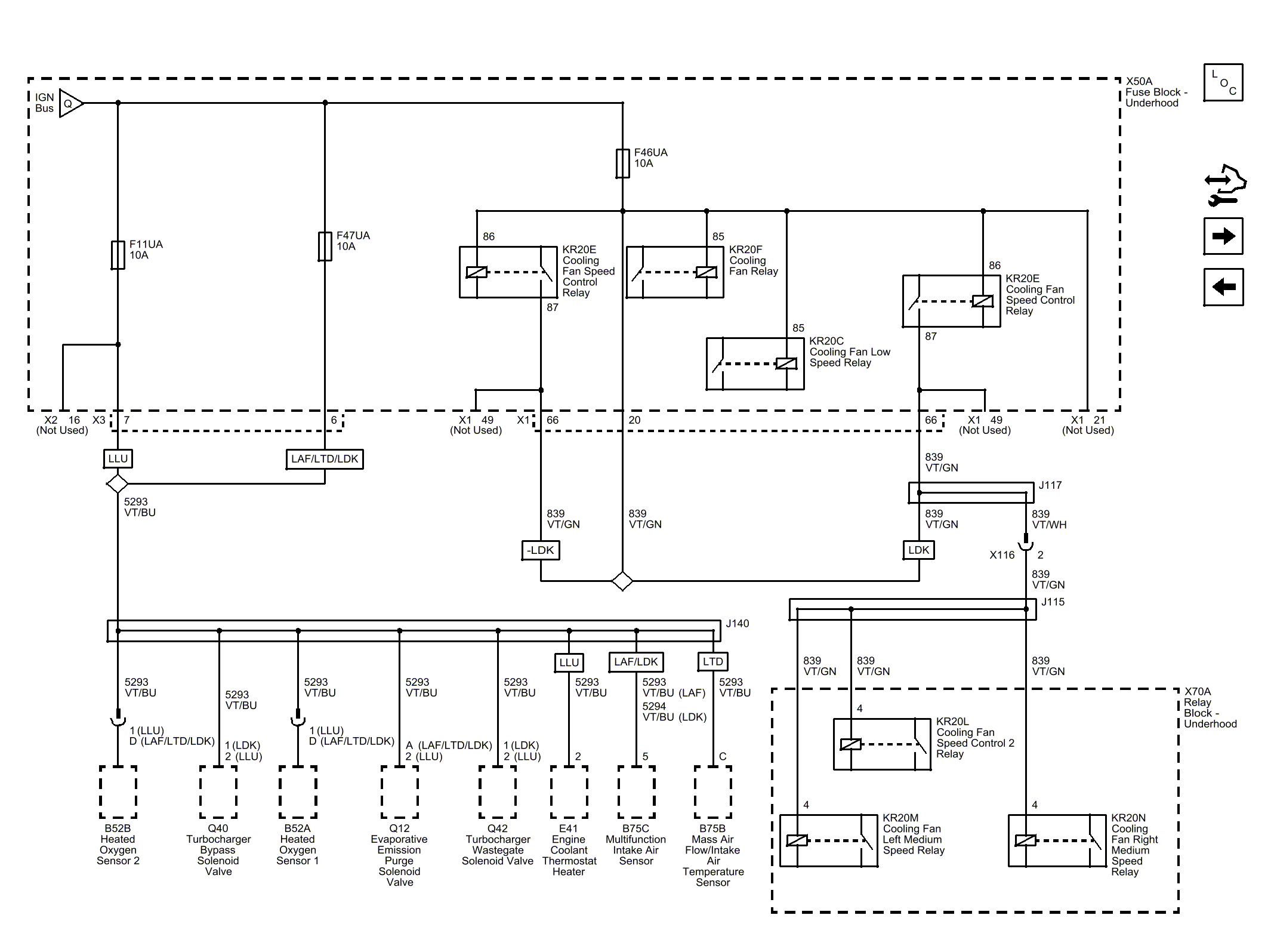

Fig 1: F11UA, F46UA, and F47UA (LAF or LTD) Fuses (CZ2)

GM3770043

Courtesy of GENERAL MOTORS COMPANY
