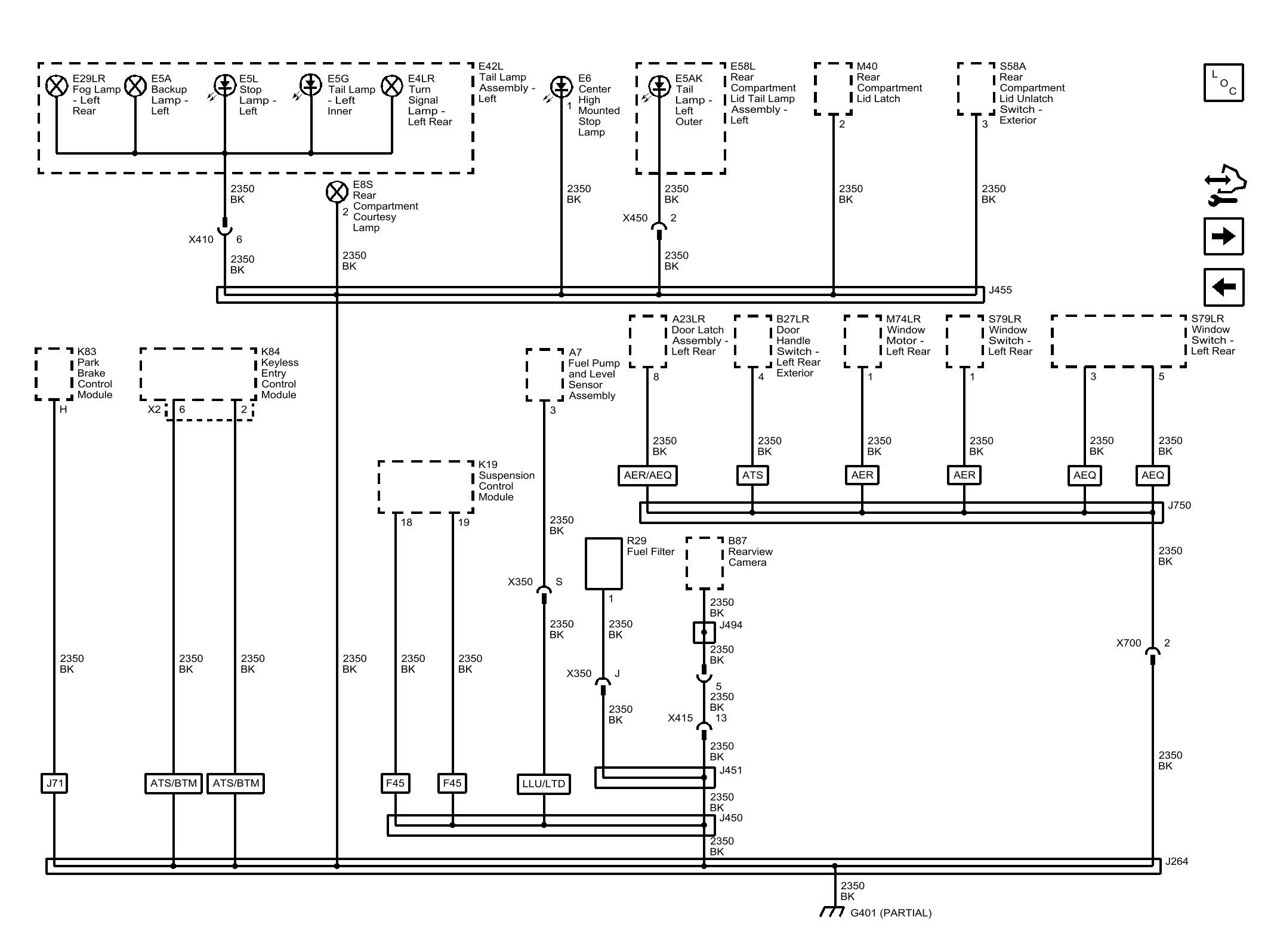

Home >> Buick >> 2015 >> Regal GS, AWD >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> Wiring Systems And Power Management - Wiring Schematic Diagrams - Ground Distribution Schematics >> Schematic Wiring Diagrams >> Ground Distribution Wiring Schematics >> G401 (1 of 2) CZ2
