G106, G109 (1 of 2), G110, G111, and G112 (except CZ2)

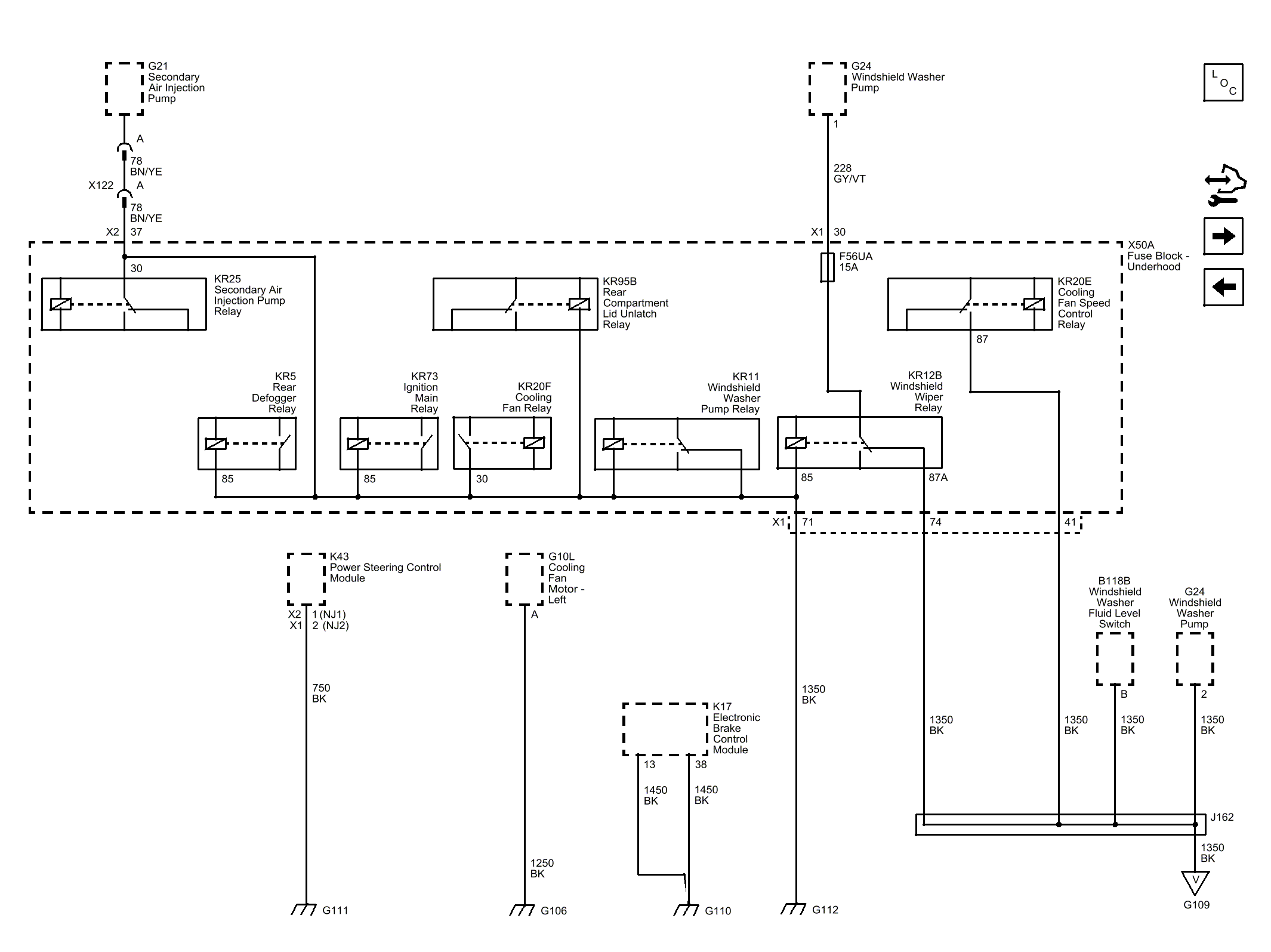

Fig 1: G106, G109 (1 of 2), G110, G111, and G112 (except CZ2)

GM3770096

Courtesy of GENERAL MOTORS COMPANY
