G106, G107, G109 (2 of 2), G110, G111, and G112 (CZ2)

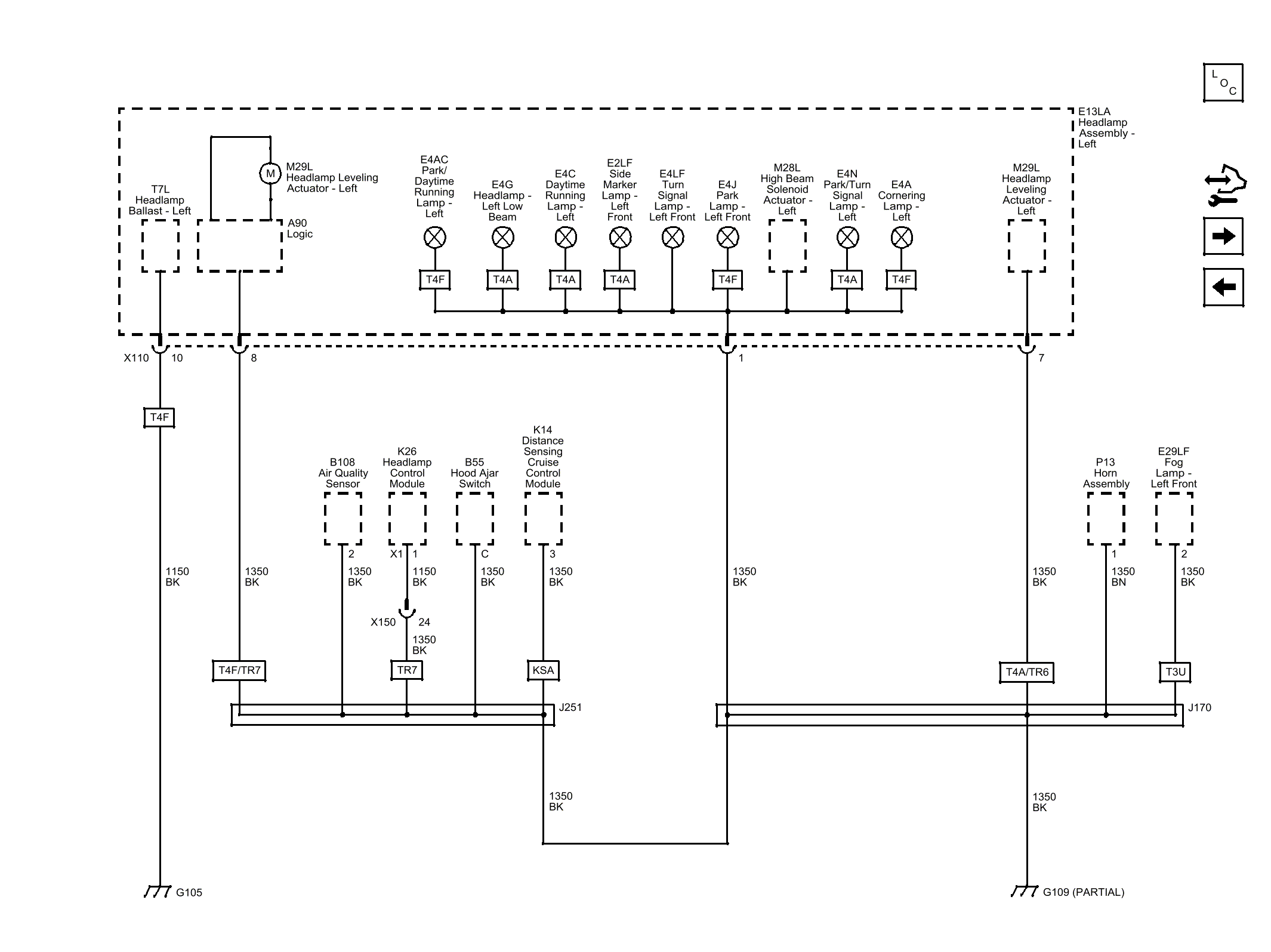

Fig 1: G106, G107, G109 (2 of 2), G110, G111, and G112 (CZ2)

GM3770142

Courtesy of GENERAL MOTORS COMPANY
