G102, G105 and G109 (2 of 2) (except CZ2)

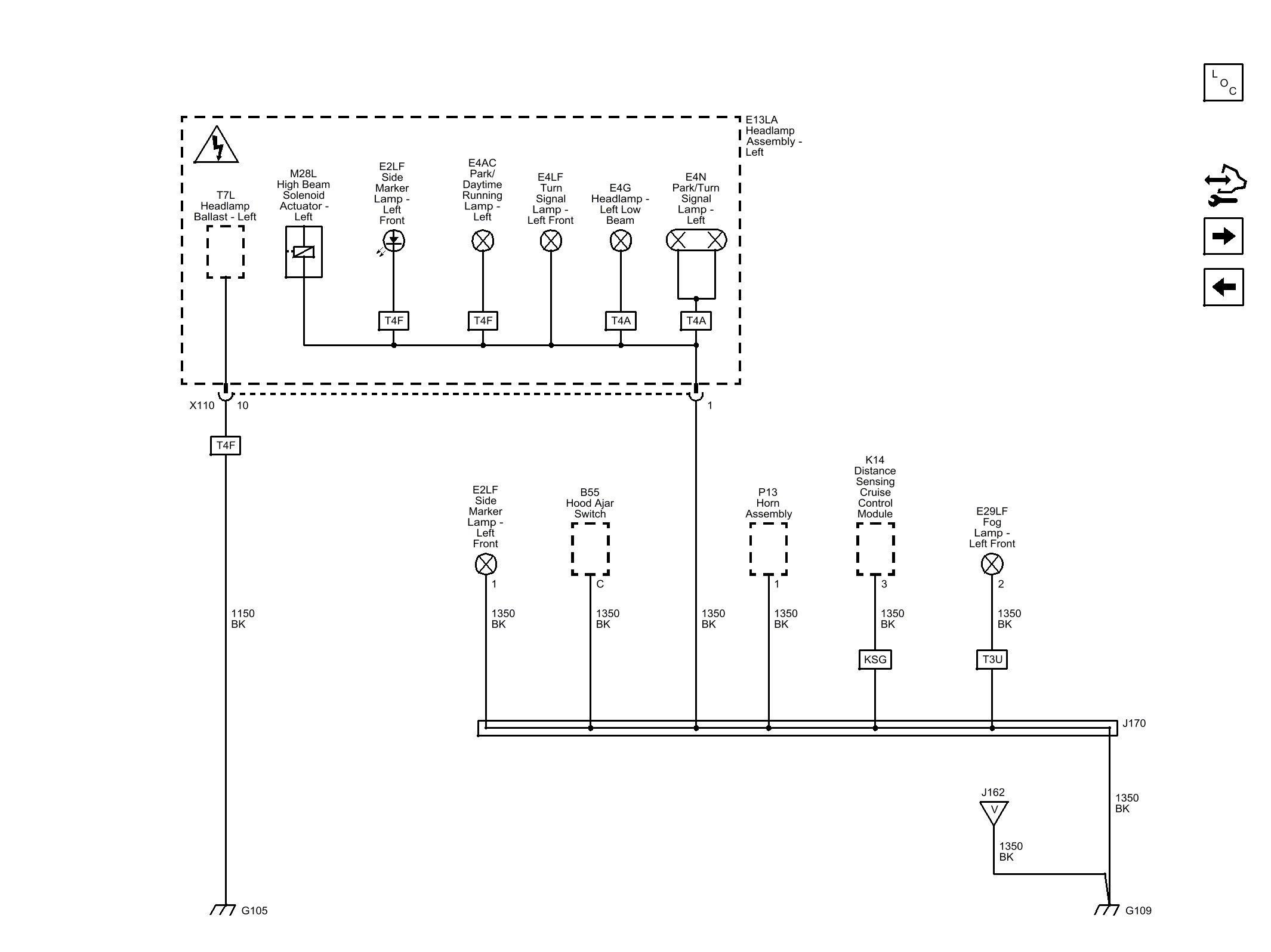

Fig 1: G102, G105 and G109 (2 of 2) (except CZ2)

GM3770099

Courtesy of GENERAL MOTORS COMPANY
