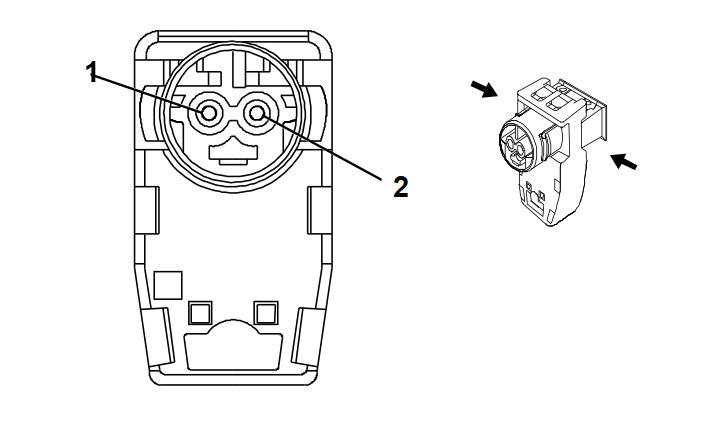

F105R Roof Rail Air Bag - Right
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Not Available | J-35616-64B (LT BU) | Not Available | Not Available | Not Available | Not Available | Not Available |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.5 0.5 |
OG/GY OG/GY |
5021 5021 |
Right Front Head Curtain Module High Control Right Front Head Curtain Module High Control |
I | - |
| 2 | 0.5 0.5 |
WH/OG WH/OG |
5022 5022 |
Right Front Head Curtain Module Low Control Right Front Head Curtain Module Low Control |
I | - |
