Door Lock, Outside Rearview Mirror, and Window Switches

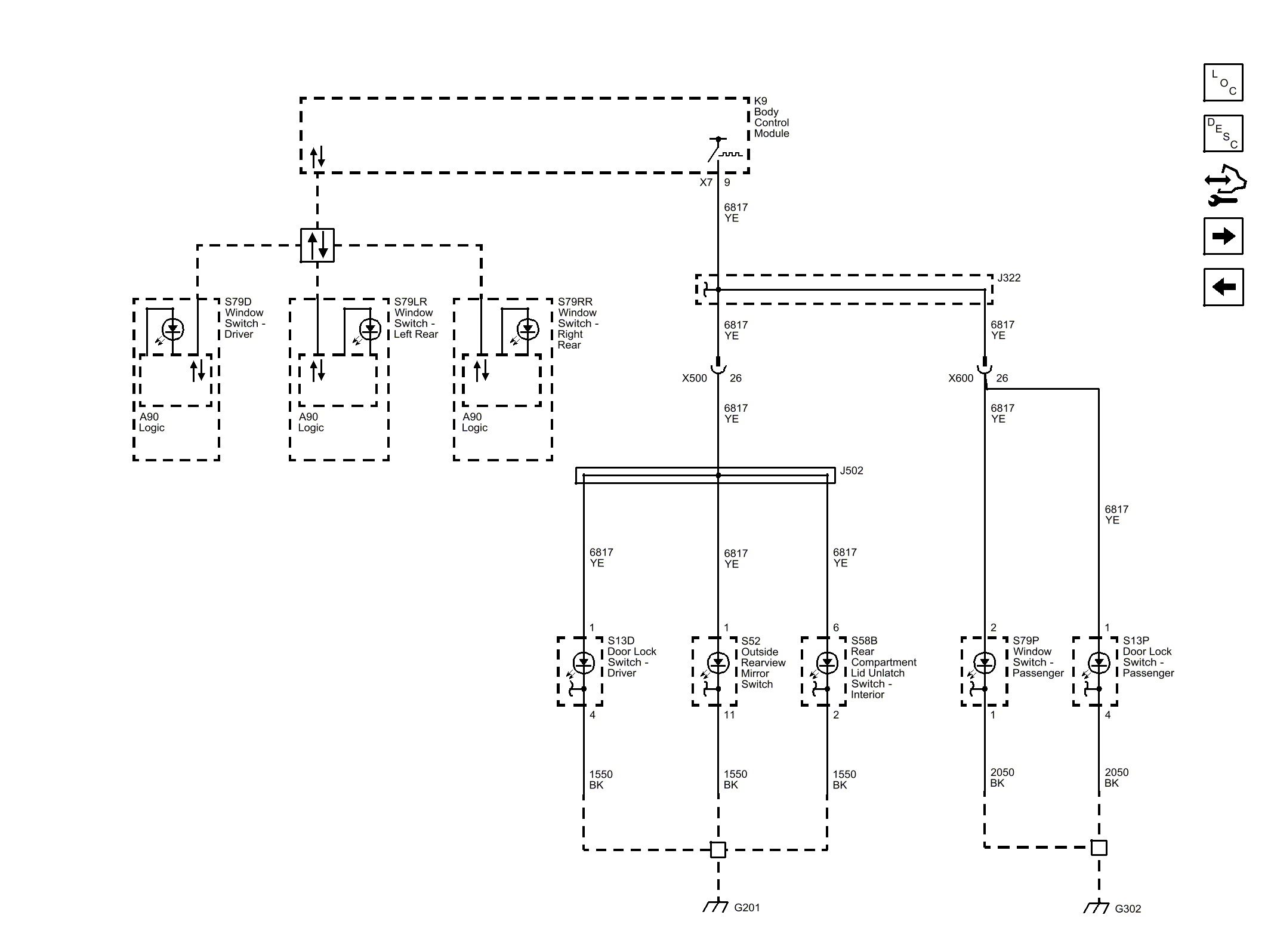

Fig 1: Door Lock, Outside Rearview Mirror, and Window Switches

GM3768281

Courtesy of GENERAL MOTORS COMPANY
